Anyone know what this O2 tank is for?


  • Please log in to reply
14 replies to this topic

#1 FTLewisBrat

FTLewisBrat
  • Members
    • Member ID: 108,940
  • 104 posts
  • Gender:Male
  • Location:Isle of Misfit Toys

Posted 19 December 2018 - 10:07 AM

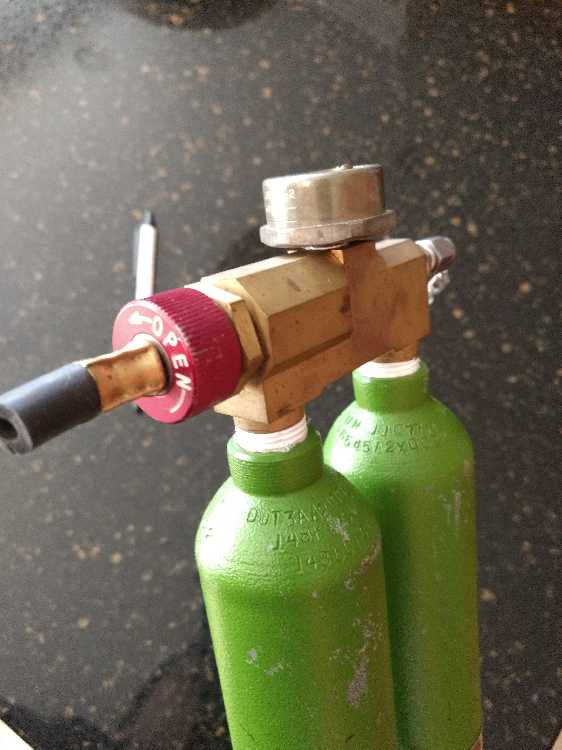

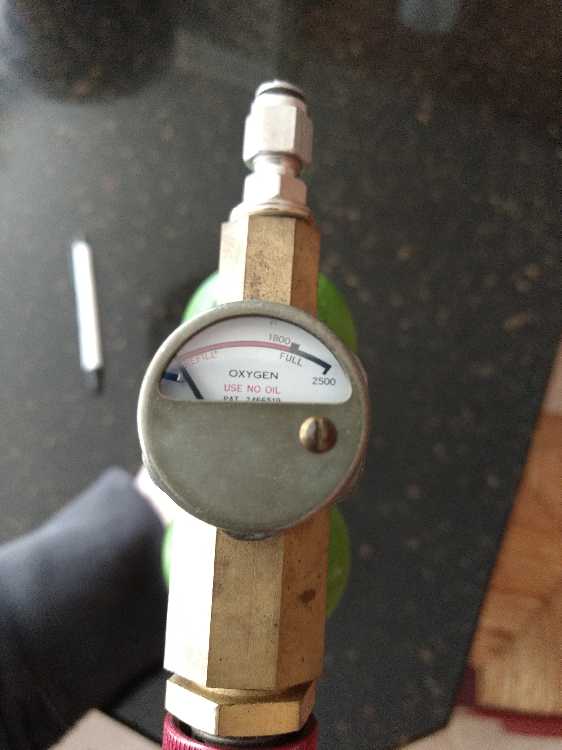

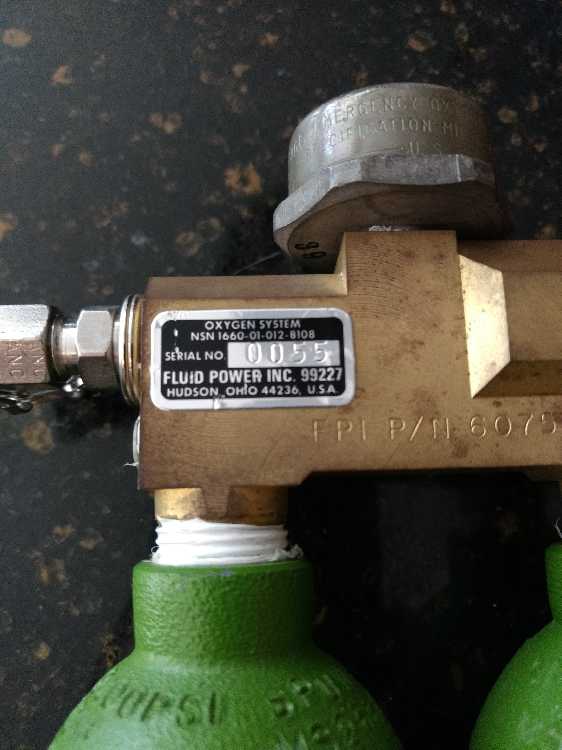

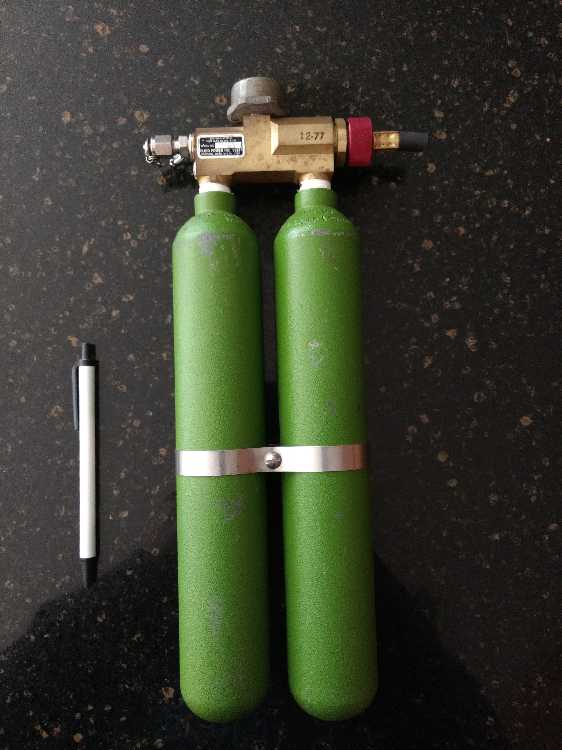

Does anyone know what the practical use of this oxygen tank assembly might have been?

Its labeled with NSN# 1660- 01-012-8108 and dated 12-77, tanks are rated for 2100 psi.

When I look it up the description is OXYGEN SYSTEM, FREE FALL, and it appears under the Aircraft Components and Accessories / Aircraft Air Conditioning, Heating, and Pressurizing Equipment section.

Other oxygen tanks Ive seen used by parachutists are single tank items, so I was wondering if it might have been for emergency use in an aircraft of some kind.

Any info is appreciated!

Thanks,
Rick

Attached Images

  • resized_IMG_20181219_125523859.jpg
  • resized_IMG_20181219_125539745.jpg
  • resized_IMG_20181219_125616283.jpg
  • resized_IMG_20181219_131133302.jpg

Edited by FTLewisBrat, 19 December 2018 - 10:13 AM.


#2 phantomfixer

phantomfixer
  • Members
    • Member ID: 155,518
  • 2,583 posts
  • Gender:Male
  • Location:Dover DE

Posted 19 December 2018 - 01:38 PM

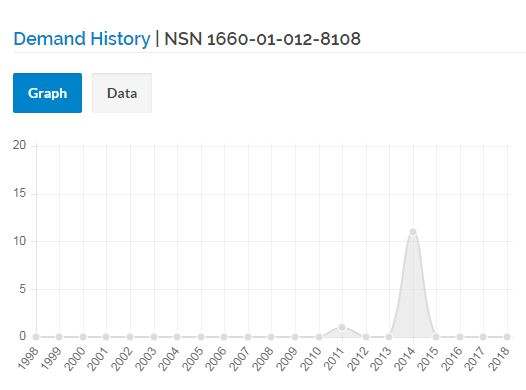

one web site describes it as part of a free fall system...here is a record of the NSN order history, or demand from supply anyway...





Attached Images

  • Capture.JPG


#3 FTLewisBrat

FTLewisBrat
  • Members
    • Member ID: 108,940
  • 104 posts
  • Gender:Male
  • Location:Isle of Misfit Toys

Posted 19 December 2018 - 03:22 PM

I saw "free fall" in the description and initially thought maybe it was a HALO item of some kind.

That doesn't seem to jive with it's being listed in aircraft categories though.

#4 phantomfixer

phantomfixer
  • Members
    • Member ID: 155,518
  • 2,583 posts
  • Gender:Male
  • Location:Dover DE

Posted 19 December 2018 - 05:28 PM

HALO could be...when I hear HALO I think spec ops stuff...could be for the high altitude ballon parachute jumps...not sure if the USAF still does that kinda stuff

F111 had an escape pod..
Maybe something along those lines...

Edited by phantomfixer, 19 December 2018 - 05:29 PM.


#5 mohawkALSE

mohawkALSE
  • Members
    • Member ID: 11,373
  • 682 posts
  • Gender:Male
  • Location:Ohio

Posted 19 December 2018 - 07:38 PM

Looks like an earlier HALO oxygen setup from the 70s, def not the current style.  The current one does use a twin bottle setup similar to that but different tanks and the regulator is different.   This looks like it used a bailout bottle style rubber hose and fitting to deliver the oxygen and its clearly cut off.



#6 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 69 posts

Posted 07 November 2019 - 07:16 AM

That assembly is part of the O2 system for the MC-3 HALO Freefall rig which used the 24' flat circular, steering modified canopy for high altitude work. circa 70s

The hose that's been cut would have connected to the CRU-60 for the MS22001 (or other)

Info can be found in TM 10-1670-264-13&P



#7 Bob Hudson

Bob Hudson

    Forum Co-Founder (Ret)

  • Administrators
    • Member ID: 2
  • 26,617 posts
  • Gender:Male

Posted 07 November 2019 - 07:24 AM

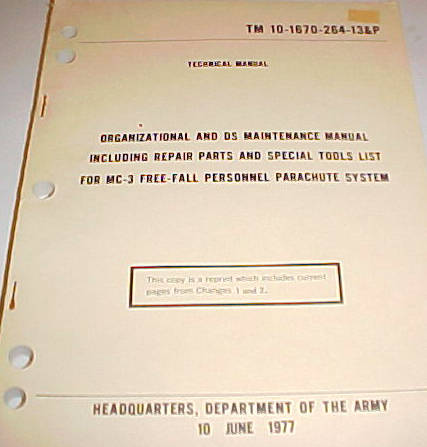

Info can be found in TM 10-1670-264-13&P



one of our forum sponsors has that Manual for sale: https://wardogmilita...roducts_id=7088



Screen Shot 2019-11-07 at 7.22.26 AM.png



#8 mohawkALSE

mohawkALSE
  • Members
    • Member ID: 11,373
  • 682 posts
  • Gender:Male
  • Location:Ohio

Posted 07 November 2019 - 02:22 PM

Id imagine if Army used with a MS mask in the 70s, it probably had a MC-3A connector installed on the mask vs a 3 pin bayonet connector for a CRU.  Never saw a Army Aviation MS mask with anything other than the MC-3A but also never saw a MS that was actually used for HALO in a actual photo,  just recent displays.  Basically does the same job for a bailout or aircraft supply connection but stays with the mask and makes it a bit heavier.  Figured I was tracking right on it was a HALO setup.  FPI Ohio is still in business making Aviators Breathing Oxygen regulators, connectors and such.



#9 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 69 posts

Posted 08 November 2019 - 05:21 AM

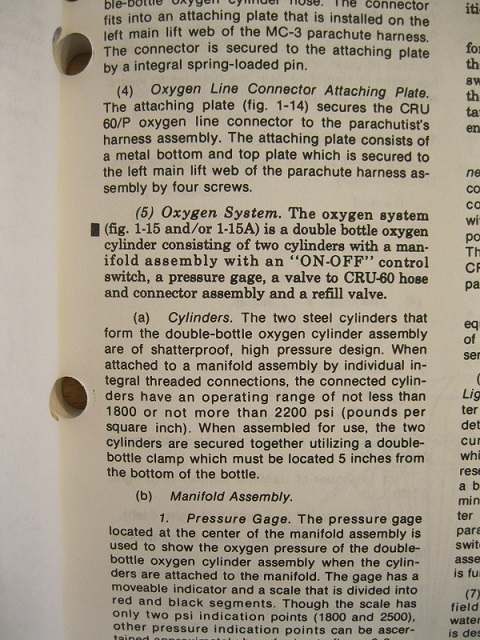

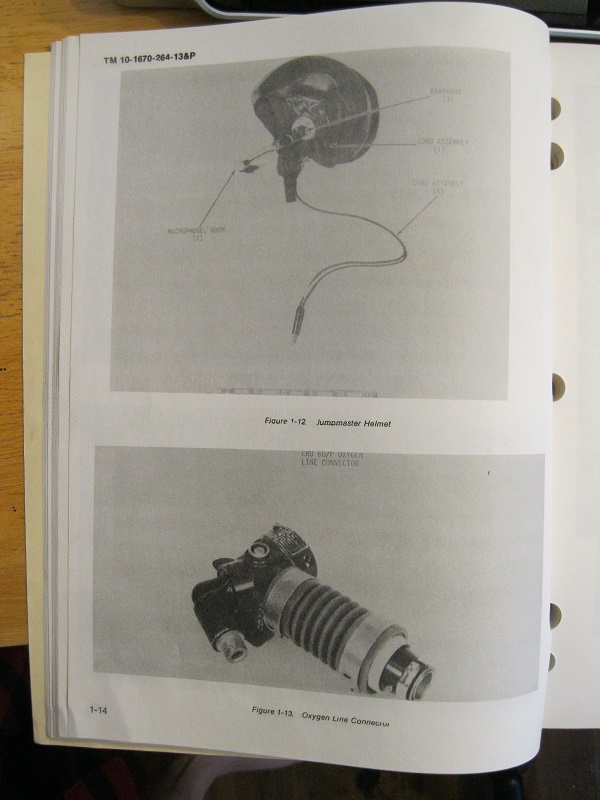

The MC-3A would be difficult to "anchor" to the parachute harness, where as the CRU-60 had a hard bayonet mount to

facilitate stability at terminal velocity. Maybe the most deciding factor between the two.  Below is a couple of pics from the TM.

Attached Images

  • IMG_1436.JPG


#10 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 69 posts

Posted 08 November 2019 - 05:22 AM

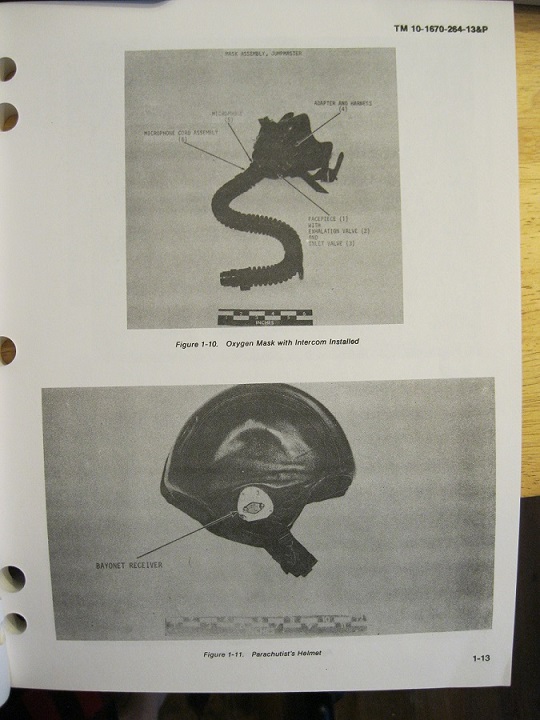

Mask w/ attachment

Attached Images

  • IMG_1431.JPG


#11 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 69 posts

Posted 08 November 2019 - 05:24 AM

Supply fitting

Attached Images

  • IMG_1433.JPG

Edited by AMT369D, 08 November 2019 - 05:24 AM.


#12 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 69 posts

Posted 08 November 2019 - 05:25 AM

oxygen supply

Attached Images

  • IMG_1435.JPG


#13 FTLewisBrat

FTLewisBrat
  • Members
    • Member ID: 108,940
  • 104 posts
  • Gender:Male
  • Location:Isle of Misfit Toys

Posted 08 November 2019 - 07:55 AM

I sold this item to another forum member not long after posting this question, he sent me a link to some pics of the bottle set in use.

First pic is labeled;

Special Force, April 1982. Fort Bragg, NC. The five Special Force units: Combat Parachutist, High Flight Parachutist, Mountain Training, Frogmen, and Forest Jumper.

You can see the bottle under the reserve.

Attached Images

  • Group.JPG


#14 FTLewisBrat

FTLewisBrat
  • Members
    • Member ID: 108,940
  • 104 posts
  • Gender:Male
  • Location:Isle of Misfit Toys

Posted 08 November 2019 - 07:57 AM

Second pic is labeled;

April 1982. Fort Bragg, NC. The High Flight Parachutist, one of the five Special Force units.

Attached Images

  • 2.JPG


#15 mohawkALSE

mohawkALSE
  • Members
    • Member ID: 11,373
  • 682 posts
  • Gender:Male
  • Location:Ohio

Posted 08 November 2019 - 05:32 PM

Well thats what I needed to see all this time.  The pub has great info clearly,  they have the newer silicone hoses that are longer and clearly the 3 pin bayonet hose fitting.  The Army Aviation MS masks had the shorter cloth like O2 hose and the MC-3As.  Those shorter hoses are awful.



I def agree about the CRU being more secure, those dumb nylon straps with the snaps are flimsy on the MC-3A.  Saw a F-51D Mustang TO a while back that showed the proper way to attach that strap to the chest strap of the chute harness.  Never knew there was a actual way to deal with that strap.
