Model 1863 US Rifle (Zouave)


  • Please log in to reply
10 replies to this topic

#1 SARGE

SARGE

    MODERATOR

  • Moderators
    • Member ID: 130
  • 2,668 posts
  • Gender:Male
  • Location:Kansas City Metro

Posted 06 December 2019 - 09:20 AM

Gents,

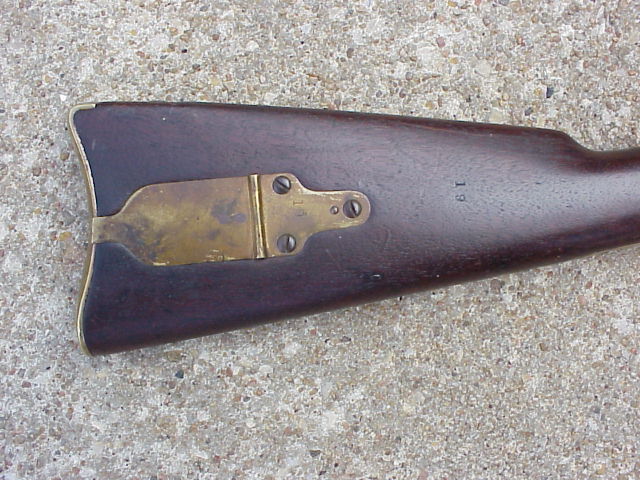

I picked up a nice clean Civil War Remington made M 1863 US RIfle last week that I thought I would show.  This particular rifle is unaltered and was made in 1863 according to the matching lockplate and barrel markings.  The rifle also has a nice Federal Inspector cartouche on the left side of the wooden stock.  No unit markings except for "19" on the right side of the butt stock and brass patch box which I presume is simply a rack number.  This rifle is commonly called the Remington "Zouave" rifle but this is collector terminology.  There is no contemporary information as to which units this Federal Contract rifle was issued to, much less any Zouave Militia units.



These rifles are interesting in that they were all made by Remington in the same shorter two brass banded format as the earlier model 1841 and 1855 Models.  There were approximately 12,000 of these reportedly very accurate rifles manufactured by Remington under this Civil War contract and many will be found in this minty condition that seems to indicate they were unissued during the war.  Some will also be found showing heavy use but used by whom is unknown.



This particular rifle came with quite a few accouterments and the former owner's written provenance back to when he purchased it in the 1950s.  The rifle came with a period sling, spare nipple, spare sight, some mini-balls, percussion caps, and tools.  This rifle was manufactured by Remington with a blued, and Federally inspected, 7 grove rifled steel barrel in .58 caliber.  The barrel is made with an attachment for the so-called Zouave saber bayonet instead of the angular bayonet used on the longer three band CW rifles.  All the hardware is brass and there is a hinged patch box on the right side of the stock at the butt plate.  The bright finished ramrod is correct for this rifle as is the black leather sling.





Attached Images

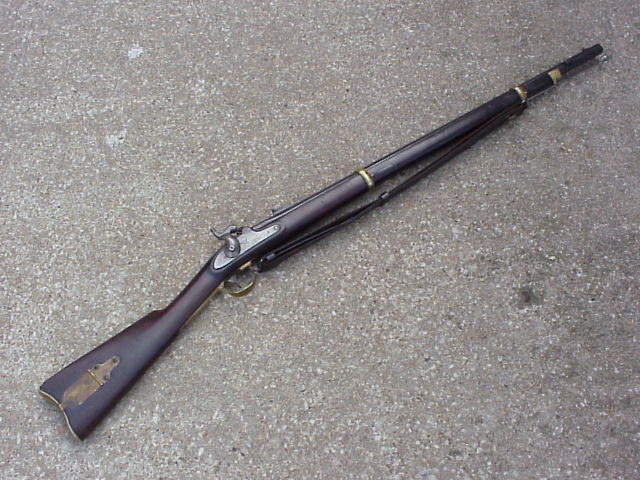

  • Zouave rifle musket.JPG

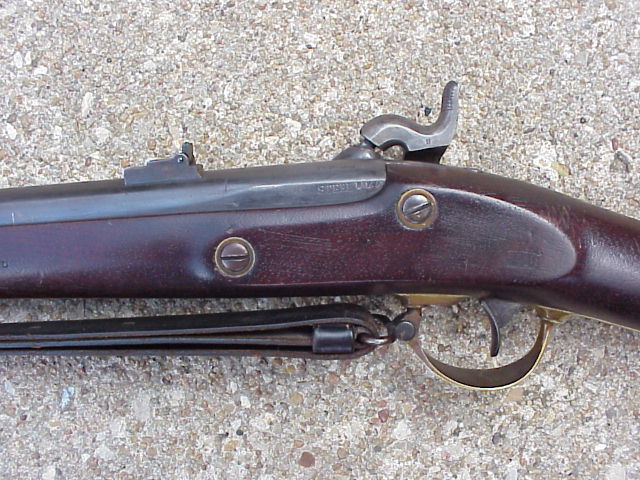

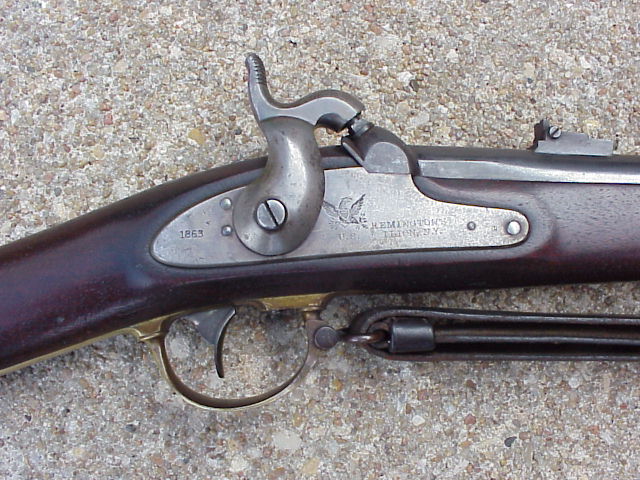

  • Zouave action.JPG
  • Zouave action left.JPG

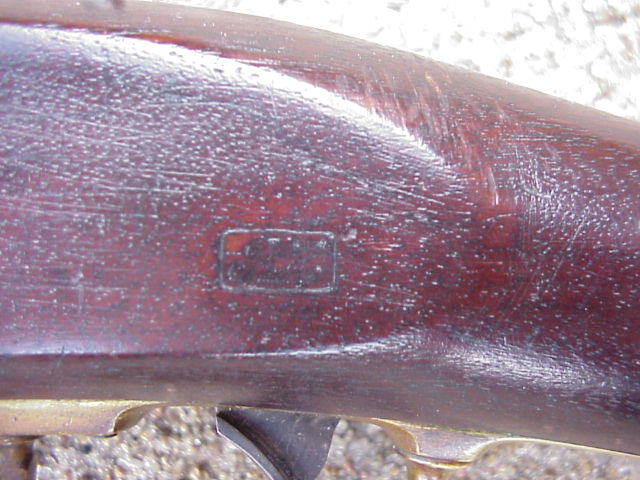

  • Zouave cartouche.JPG
  • Zouave inspector markings.JPG
  • Zouave lock plate.JPG


#2 SARGE

SARGE

    MODERATOR

  • Moderators
    • Member ID: 130
  • 2,668 posts
  • Gender:Male
  • Location:Kansas City Metro

Posted 06 December 2019 - 09:27 AM

A few more photographs.





Attached Images

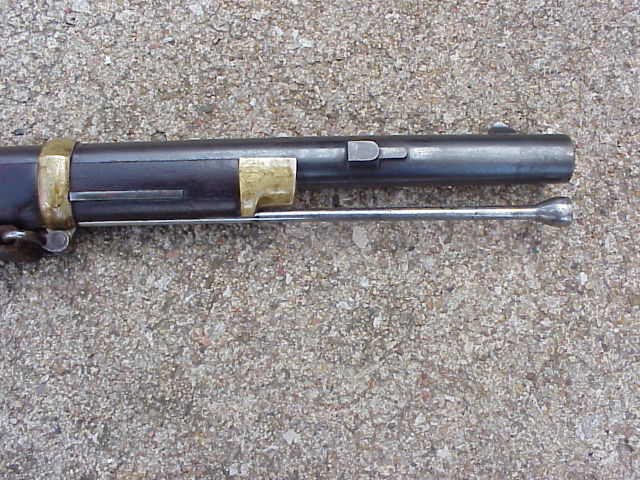

  • Zouave muzzle.JPG
  • Zouave patch box.JPG
  • Zouave patch box contents.JPG

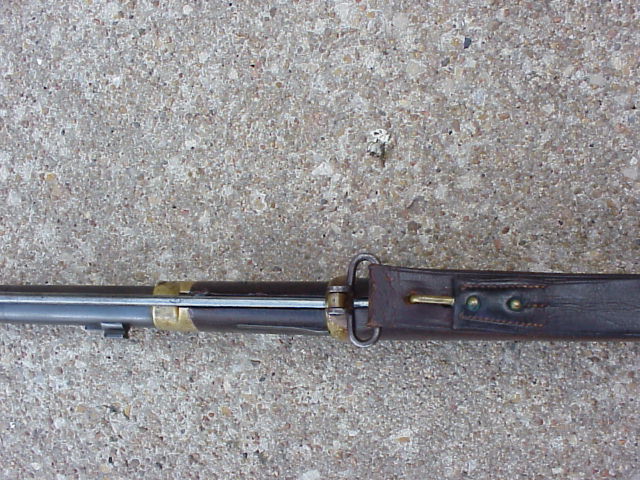

  • Zouave sling.JPG

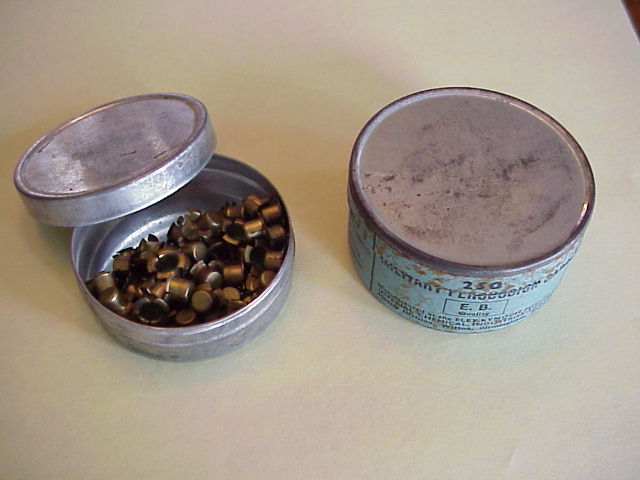

  • Brit percussion caps.JPG

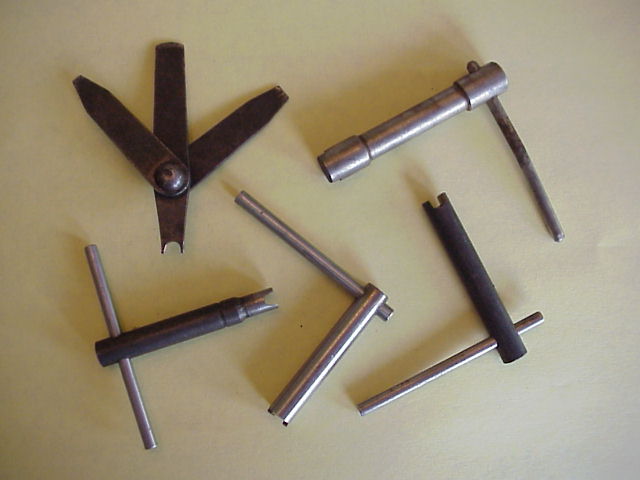

  • Nipple wrenches.JPG


#3 mdk0911

mdk0911
  • Members
    • Member ID: 80,886
  • 1,471 posts
  • Gender:Male
  • Location:Eastern PA

Posted 06 December 2019 - 10:44 AM

very nice gun - great pick-up and really like the 'patch box' on the stock



#4 skypilot6670

skypilot6670
  • Members
    • Member ID: 137,056
  • 755 posts
  • Gender:Male
  • Location:Fla.

Posted 06 December 2019 - 12:00 PM

That is a beautiful musket ,really like the brass furniture. Congratulations. Thanks for posting. Mike

#5 Lee Ragan

Lee Ragan
  • Members
    • Member ID: 97
  • 3,150 posts
  • Gender:Male
  • Location:Odessa, Texas

Posted 06 December 2019 - 01:35 PM

A beautiful rifle, but too bad none of them were ever issued to troops. There has been a LOT of discussion about this over the years in reenactor magazines, but to my knowledge, nobody has ever prooved that any of these were actually issued to troops. They have however had a lot of use in the civilian market and were popular hunting rifles.



#6 mikie

mikie
  • Members
    • Member ID: 2,687
  • 2,339 posts
  • Gender:Male
  • Location:San Jose, Ca

Posted 06 December 2019 - 02:26 PM

Strange that they weren't used. I wonder why?  I've read about troops being issued old surplus guns from Europe that were so bad only the rust was keeping them from falling apart.



Mikie



#7 M24 Chaffee

M24 Chaffee
  • Members
    • Member ID: 2,899
  • 923 posts
  • Gender:Male
  • Location:Pennsylvania, near Philadelphia

Posted 07 December 2019 - 05:26 AM

Great musket and very cool to have the tools and sling! Will you be adding a saber bayonet?

Frank

#8 SARGE

SARGE

    MODERATOR

  • Moderators
    • Member ID: 130
  • 2,668 posts
  • Gender:Male
  • Location:Kansas City Metro

Posted 08 December 2019 - 03:50 PM

Great musket and very cool to have the tools and sling! Will you be adding a saber bayonet?

Frank

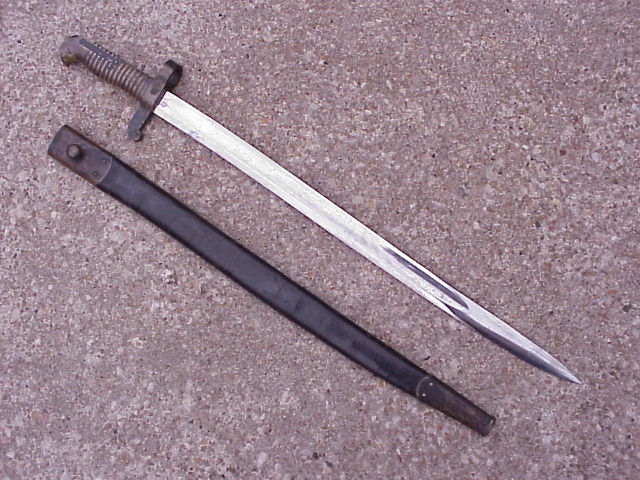

Thanks Frank.  And, yes I already have a Zouave saber bayonet for the rifled musket.  The bayonet is uncleaned with 150 years of patina on it so I won't be cleaning it any time soon.  These bayonets have no maker on the yataghan bright finished steel blades but are marked with "B.H" on the back of the hilt just behind the muzzle ring.  They also have a short pommel groove cut to match the short guide on the barrel.  This bayonet is shown as number 74 in Harden, "The American Bayonet 1776-1964".

Attached Images

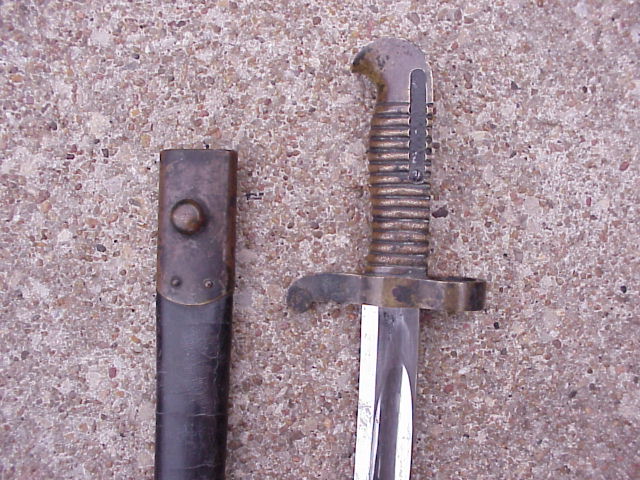

  • Zouave bayonet.JPG
  • Zouave bayo close.JPG

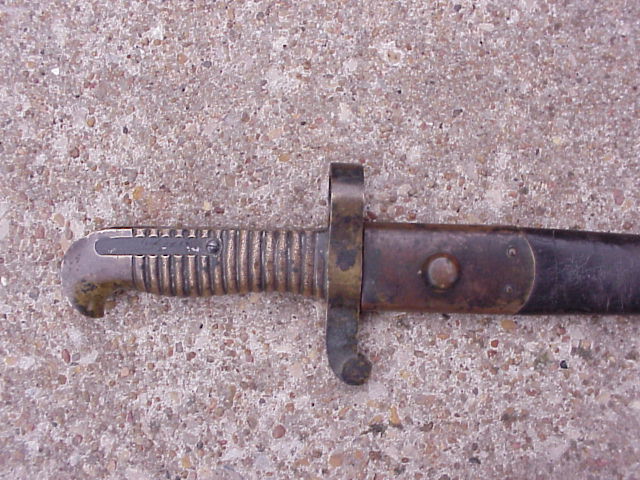

  • Zouave bayo hilt.JPG
  • Zouave bayo hilt back.JPG

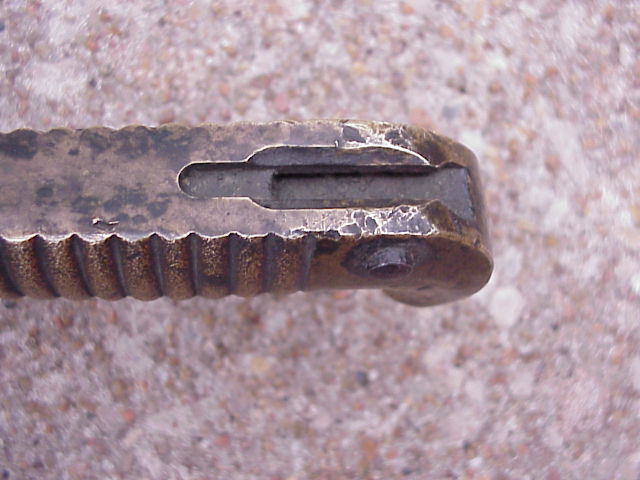

  • Zouave bayo pommel.JPG


#9 M24 Chaffee

M24 Chaffee
  • Members
    • Member ID: 2,899
  • 923 posts
  • Gender:Male
  • Location:Pennsylvania, near Philadelphia

Posted 09 December 2019 - 05:26 AM

Beautiful bayonet and scabbard!

Frank

#10 SARGE

SARGE

    MODERATOR

  • Moderators
    • Member ID: 130
  • 2,668 posts
  • Gender:Male
  • Location:Kansas City Metro

Posted 09 December 2019 - 08:12 AM

A beautiful rifle, but too bad none of them were ever issued to troops. There has been a LOT of discussion about this over the years in reenactor magazines, but to my knowledge, nobody has ever prooved that any of these were actually issued to troops. They have however had a lot of use in the civilian market and were popular hunting rifles.





Lee,



You are right about the large volume of chatter concerning these two band rifles.  Some even go as far as to say since there is no proof that they were issued to CW troops they should not be used by re-en-actors when engaging in weekend skirmishes and encampments.  I don't want to add fuel to the fire but I do have an opinion on the matter.



First off, we collectors, and re-en-actors, cannot even agree on what to call these M1841 & M1955 Mississippi style rifled muskets.  Some call them the "Model 1862", some the "Model 1863", and some the "Zouave Rifle".  Saying these rifles are not legitimate Civil War rifles is incorrect IMHO.  These stands of arms (including bayonets) were contracted for by the Federal Government during the Civil War.  They were produced, and delivered, by Remington during the Civil War.  They were inspected, and passed, by Federal inspectors after manufacture and some have rack numbers indicating they resided in an armory or barrack during the war.  By this logic we should not include Militia marked weapons, foreign made Enfield Rifles, or any CW period firearm that is not directly traceable to a soldier in a Civil War combat unit.



It is hard to disprove a negative such as indicating there is no proof these rifles were used by troops during the CW.  It is also hard to prove that a specific rifle was used by a soldier during the war unless there is specific provenance verifying that fact.



Just my opinion mind you.   :rolleyes:



#11 warroom1

warroom1
  • Members
    • Member ID: 103
  • 359 posts
  • Gender:Male
  • Location:florida

Posted 09 December 2019 - 11:02 AM

They were used in very small numbers you have did buts its their, i think Ohio had a few, most were held in stock or reserve

by the NY inspector general, I aso belive the Rogers and spence pistol was all some held, A bunch were sent to France for the 1870 war with Germany and some went to U.S. GAR groups.
