MBU-12 Comm Cord question.


  • Please log in to reply
5 replies to this topic

#1 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 78 posts

Posted 25 November 2019 - 10:36 AM

I just picked up a strange comm cord that has a large Y (splitter) on the mask end and the

helmet cord and mask cord are on opposite sides from all the other standard cord "Y's" out there.

When installed on the mask, the helmet cord is right side of mask which makes for a different routing

under or over the mask to the helmet.



what was this cord made for?

Curious


Edited by AMT369D, 25 November 2019 - 10:38 AM.


#2 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 78 posts

Posted 25 November 2019 - 11:01 AM

..

Attached Images

  • IMG_1448.JPG


#3 RWW

RWW
  • Members
    • Member ID: 177,224
  • 103 posts
  • Gender:Male
  • Location:Alabama

Posted 26 November 2019 - 01:50 AM

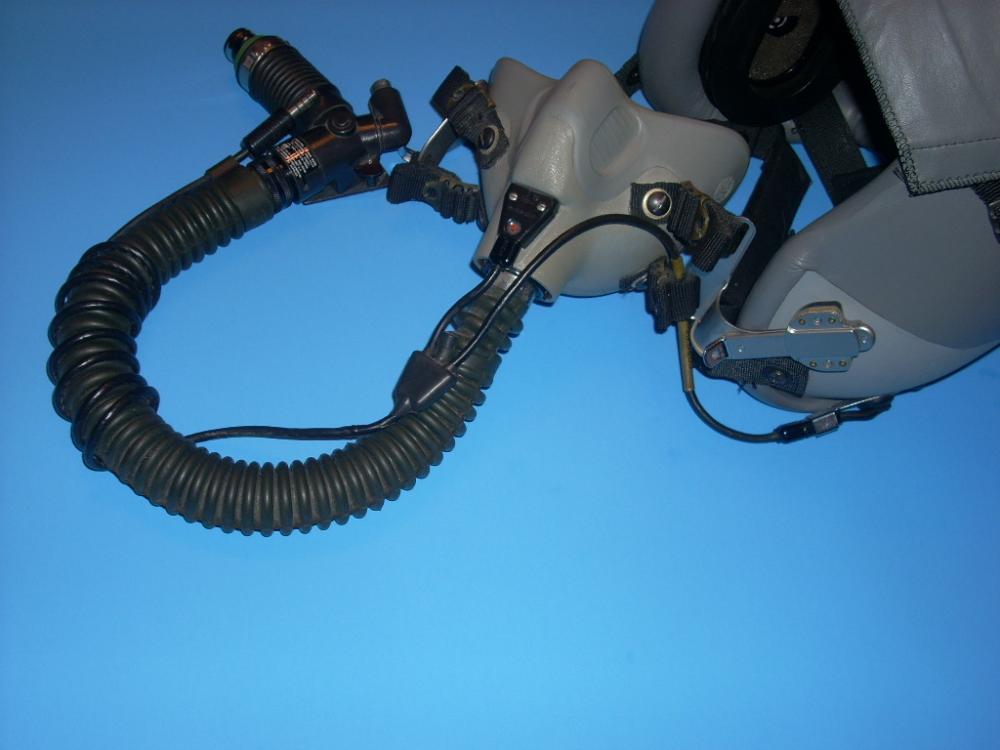

It appears to be a standard CX-47 comm cord. They probably didn't take any pains when they took it off the mask and like an old coiled phone cord it just ended up that way.  I suspect you can work the coils back to the long cord on the left.

Attached Images

  • DSCN2242.JPG


#4 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 78 posts

Posted 26 November 2019 - 04:11 AM

Worked great! Thanks

I thought the "set" in the coils would cause

a problem with reversing them,...

Any info / reason for the large Y in this cord or was it just a

design feature from the manufacturer?

Thanks again!



#5 phantomfixer

phantomfixer
  • Members
    • Member ID: 155,518
  • 2,626 posts
  • Gender:Male
  • Location:Dover DE

Posted 26 November 2019 - 07:07 AM

LOL was gonna say flip it over...the cords come from the factory coiled around a plastic spool/tube..and secured with a wire tie....and if coiled the wrong way or coiled on the mask it will take that form...

Sadly Dover AFB does not use the coiled cords that come with the new masks, they use the boom mic cord...so the coiled cords get tossed in ...still coiled  oh the humanity



#6 AMT369D

AMT369D
  • Members
    • Member ID: 173,754
  • 78 posts

Posted 26 November 2019 - 08:18 AM

lol,

yeah, it's somewhat embarrassing after 40 yrs of messing with this stuff to still let something this

simple cause a ripple in my "loft" !

Thanks for the info. ;-)
