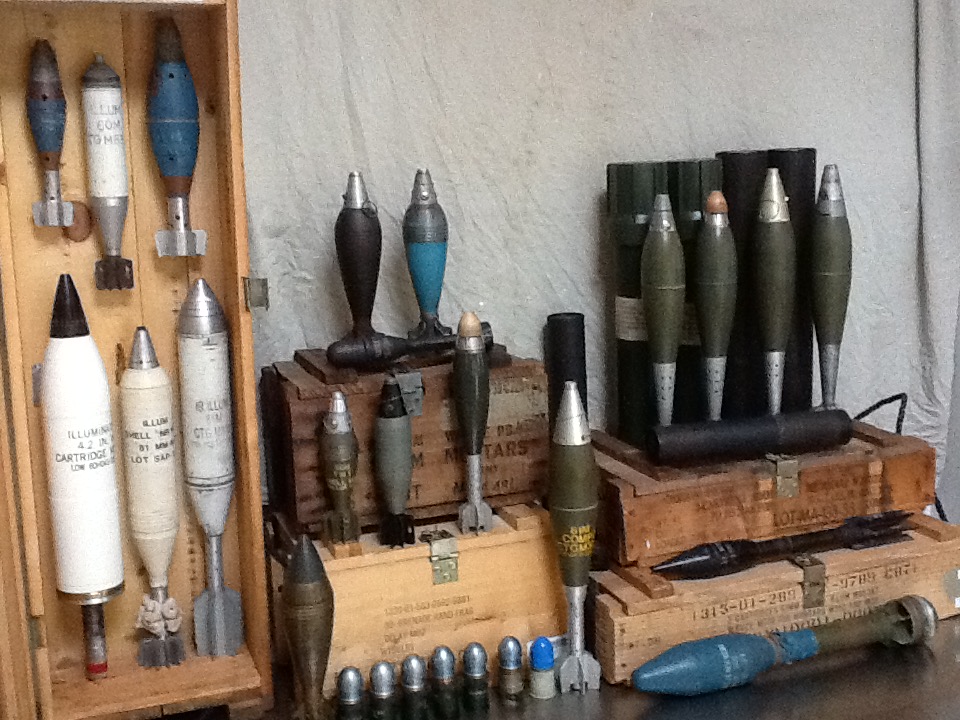

917601 Posted October 26, 2019 #1 Posted October 26, 2019 Mortars, WW2 era- present day. Many have the matching tubes and crates, but not enough room to squeeze it all in. Some rare, some common. I will post ID and " M" numbers in detailed pics. I assembled these as a general guide in identification.
917601 Posted October 26, 2019 Author #2 Posted October 26, 2019 Illumination and training rounds.Top: 60mm M766 Short Range ( SR) training, 60mm M83A1 Illum 1969, 81mm M880 short range training. Bottom: 4.2" Illumination M335A2 1980, 81mm NATO Illumination NR164A1 w/ powder charges, 81mm M816 IR Illumination.

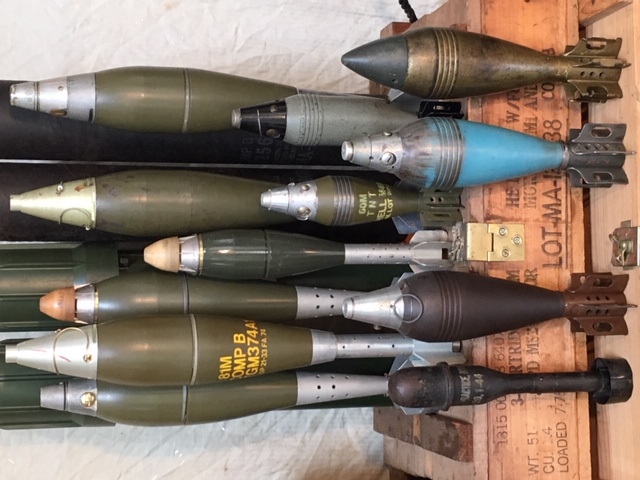

917601 Posted October 26, 2019 Author #3 Posted October 26, 2019 Top: HE 81mm: M889 w/ M935 fuze 1987, M821 w/M734 multi-option inert fuze 1990 , M362 w/M524 fuze 1966, M374A1 w/M567 fuze 1969. USMC/ Navy were issued primarily this model. Bottom: 60mm: M49A1 HE 1942, M302 WP, M720 HE 1979.
917601 Posted October 26, 2019 Author #4 Posted October 26, 2019 Bottom row: Rifle grenade M11A2 1944, 81mm pre-war w/pull ring safety pin M43 HE unmarked, 81mm M43A1B1 1955, 81mm early M43 HE w/ incorrect M78 fuze.
917601 Posted October 26, 2019 Author #5 Posted October 26, 2019 Lower right bottom corner/ row, misc: 40mm M385 linked practice grenades 1973. 3.5" HE ( blue/OD) M29A2 bazooka rocket 1972, above black rocket 2.36" M7 Bazooka rocket 1943.
917601 Posted October 26, 2019 Author #6 Posted October 26, 2019 Please upload your examples with correct model numbers and comments to be used in ID and reference. Thank you.
colt thompson Posted November 5, 2019 #7 Posted November 5, 2019 My small grouping of mainly practice/test rounds with an illumination round and a smoke
917601 Posted November 5, 2019 Author #8 Posted November 5, 2019 IMG_1347.JPG My small grouping of mainly practice/test rounds with an illumination round and a smoke Very nice, thanks for posting. The smoke ( WP) exceptional.
Greginva Posted August 9, 2020 #10 Posted August 9, 2020 How are the illumination and training rounds attached to the crate? Wire?
