B-25 OPERATIONAL AND INFLIGHT GUIDE


Recommended Posts

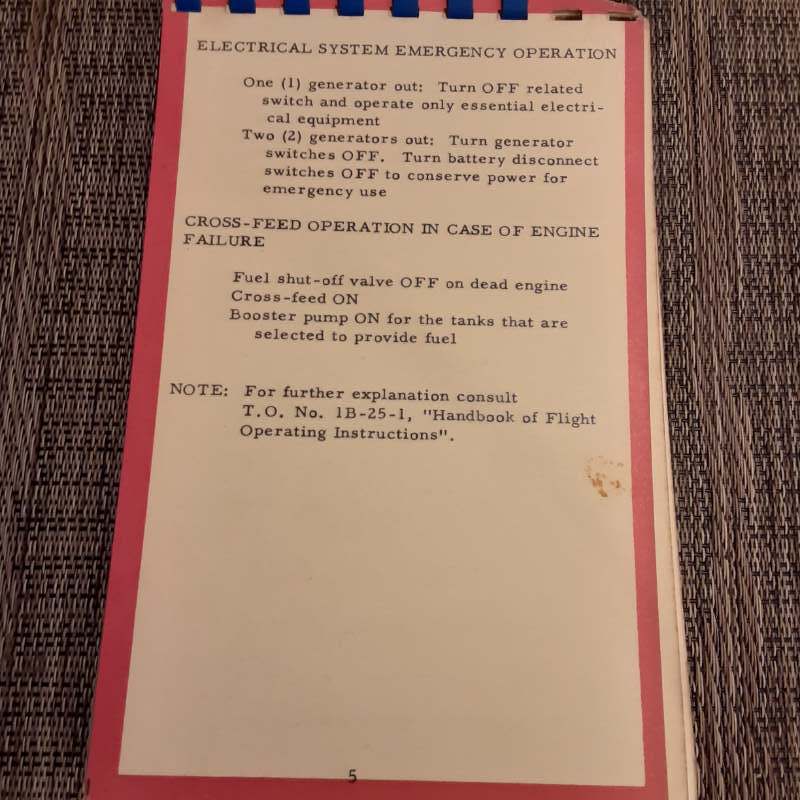

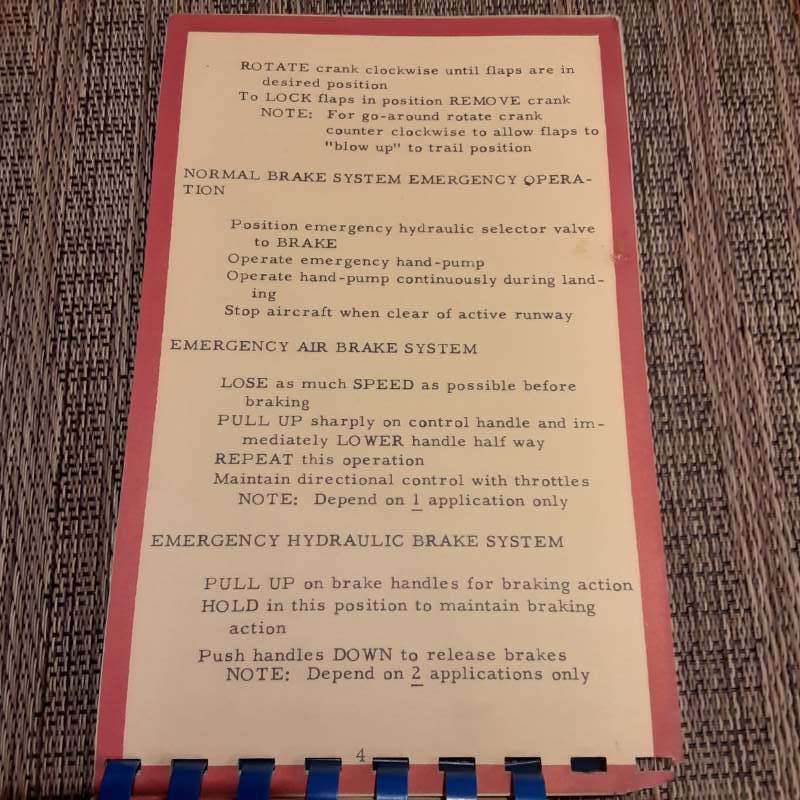

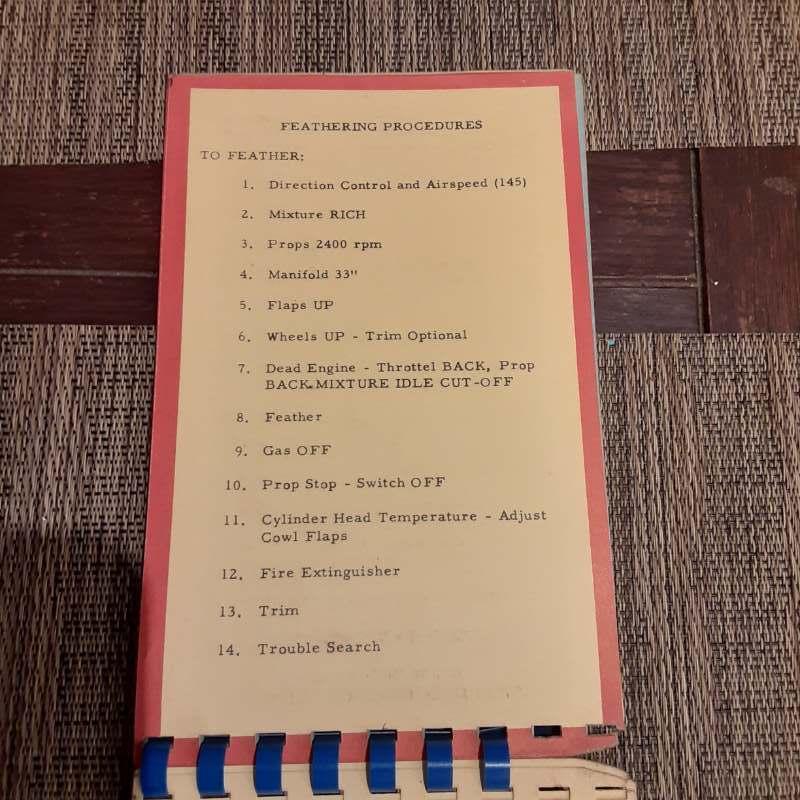

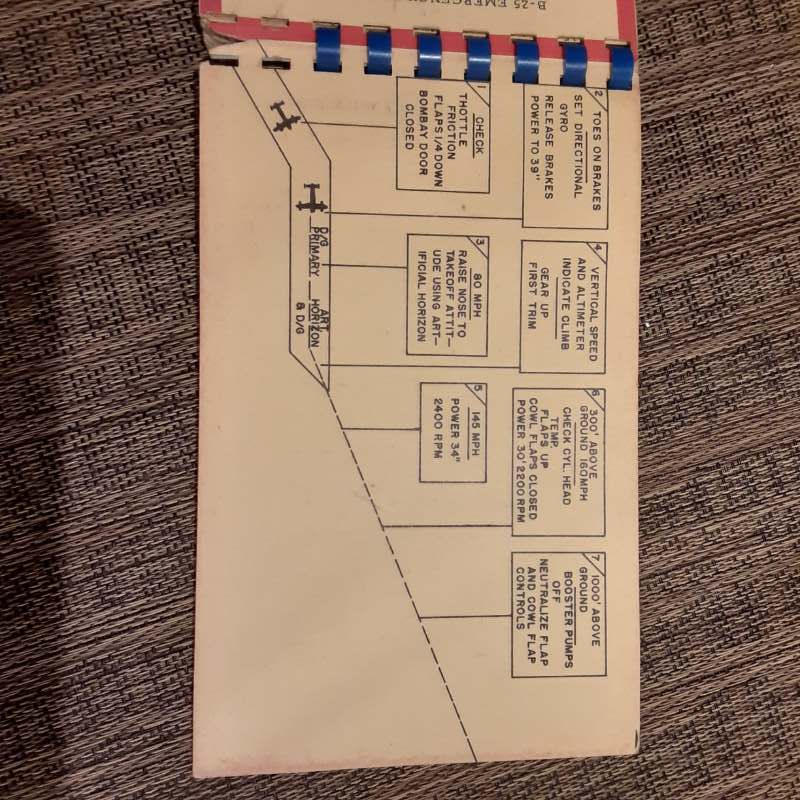

I know this should be in the paper photo section, but no. So sue me! This is a cool little book and if I ever find a B-25 with the keys in it..... It has more pages, but you get the idea.











Link to post
Share on other sites
cutiger83

This is awesome! This is one manual I have never seen.



..Kat

Link to post
Share on other sites
cutiger83
On 2/1/2021 at 7:03 AM, P-59A said:

How is that possible?

I know! Hahaha!



A friend's father trained B-25 pilots in Georgia. I will have to ask her if he was stationed at Moody AFB.



Awesome find!



..Kat

Link to post
Share on other sites
cutiger83
5 hours ago, P-59A said:

Moody started flying B-25'S IN 1951

Ah...I didn't know they flew after the war. Her father was an instructor during WWII.





Link to post
Share on other sites

My dad was in the Airforce in 56 and they still had a few flying then.

Link to post
Share on other sites
cutiger83

Right...I knew B-25s were used after WWII. I believe they were even used up until early Vietnam War. I meant I didn't know they flew at Moody after WWII rather than during the war.

Link to post
Share on other sites
The Rooster

Thank you for posting that checklist. It was very interesting to read.

My Fathers Brother was killed in one. A marine corps PBJ version.

It was a lot of airplane for 19 year old pilots. And early on, some of its dangerous flight characteristics were unknown.

Mainly, it could not be flown safely on one engine if your airspeed was below 145 miles per hour.

One of the checklist tasks was for the pilot to react to losing one engine.

This killed some young pilots before it was discovered that you have to have airspeed of at least 145 before performing that test..

Afterwards, after many crashes and deaths the test was conducted at higher altitudes above that 145 air speed.





Link to post
Share on other sites

WASP Marie Michele was killed when the B-25 she was co piloting lost an engine doing touch and go practice at an Aux field . They did not have the altitude to recover and did a flat spin down.



Link to post
Share on other sites

Hey guys, I feel the need to chime in here about the B-25 flying characteristics.

Since I’ve been flying 25’s for 19 years I thought I’d provide some perspective.

The 25 does not have any negative characteristics while operating on single engine, in fact it flies quite well on one engine.

The need to maintain 145 mph in the B-25 is simply what was referred to at the time as Safe Single Engine Speed and it was in the Flight Manual from day one.
Every multi-engine airplane ever built has it and each airplane type is different, but all will suffer a loss of control below this speed, known as Vmc, if corrective action is not promptly taken.
Basically, it is the point at which you run out of rudder to compensate for the adverse yaw created by operating on one engine as airspeed reduces. If airspeed decays too far, the airplane starts to roll over. As the condition gets worse, if you don’t reduce power on the operating engine and lower the nose, over you go.

It is something we trained on over and over again in pilot training.

Today it has become more refined as Blue Line (best single engine climb speed) and Red Line (minimum single engine speed), but on older airplanes they just gave you the one number Safe Single Engine Speed.

Incidentally, the worst time to lose one is on takeoff before you reach 145. That’s why we stay shallow initially after takeoff...to get to 145 quickly. This usually occurs by the departure end of the runway, unless you are climbing steeper to avoid obstacles.

If you dig into WWII aircraft losses, look at the accident rate. It is absolutely staggering.

The fact is that thousands of young pilots were being put into high performance aircraft with minimal experience and the accident rate reflects this.

The B-25 however, had such good flying characteristics, that it was used as a multi engine trainer in the USAF till 1958...notice the Marauder was gone immediately after the war.

If you want to read a great book, which has a story of fly a B-25 for hours on one engine, I recommend Gen  Henebry’s book about flying in the 3rd Attack Group.

Hope that sheds some light.

Also, I have a number of old B-25 checklists that I’ll post when I get some time.

Best, John

ps, P-59A, didn’t you and I communicate many years ago about the B-25 single engine accident you referred to? I was flying Executive Sweet at the time.

Link to post
Share on other sites
The Rooster

I did read that accidents killed over 15000 trainees during WW2. I read somewhere that the navy lost more people in training than they did in air combat.

For whatever reason back in late 1943, there were several crashes involving the PBJ on the checkflights out of MOTG 81 out of Cherry Point.

The instructor killed along with my uncle had just returned from escorting a friends body back home after being killed in the same kind of accident in a PBJ the week before.

The crash inspectors found the controls all set properly for one engine out. An eyewitness on the ground saw the plane about 600 feet up yawing to the left and right before it went down.

No fire no engine problems before the crash. It was the cut one engine test that killed them. Prob just the exact way like you described above.



Link to post
Share on other sites
22 hours ago, B-17Guy said:

Hey guys, I feel the need to chime in here about the B-25 flying characteristics.

Since I’ve been flying 25’s for 19 years I thought I’d provide some perspective.

The 25 does not have any negative characteristics while operating on single engine, in fact it flies quite well on one engine.

The need to maintain 145 mph in the B-25 is simply what was referred to at the time as Safe Single Engine Speed and it was in the Flight Manual from day one.
Every multi-engine airplane ever built has it and each airplane type is different, but all will suffer a loss of control below this speed, known as Vmc, if corrective action is not promptly taken.
Basically, it is the point at which you run out of rudder to compensate for the adverse yaw created by operating on one engine as airspeed reduces. If airspeed decays too far, the airplane starts to roll over. As the condition gets worse, if you don’t reduce power on the operating engine and lower the nose, over you go.

It is something we trained on over and over again in pilot training.

Today it has become more refined as Blue Line (best single engine climb speed) and Red Line (minimum single engine speed), but on older airplanes they just gave you the one number Safe Single Engine Speed.

Incidentally, the worst time to lose one is on takeoff before you reach 145. That’s why we stay shallow initially after takeoff...to get to 145 quickly. This usually occurs by the departure end of the runway, unless you are climbing steeper to avoid obstacles.

If you dig into WWII aircraft losses, look at the accident rate. It is absolutely staggering.

The fact is that thousands of young pilots were being put into high performance aircraft with minimal experience and the accident rate reflects this.

The B-25 however, had such good flying characteristics, that it was used as a multi engine trainer in the USAF till 1958...notice the Marauder was gone immediately after the war.

If you want to read a great book, which has a story of fly a B-25 for hours on one engine, I recommend Gen  Henebry’s book about flying in the 3rd Attack Group.

Hope that sheds some light.

Also, I have a number of old B-25 checklists that I’ll post when I get some time.

Best, John

ps, P-59A, didn’t you and I communicate many years ago about the B-25 single engine accident you referred to? I was flying Executive Sweet at the time.

Yes we did!!!!!! That is how I know that! I found Marie's brother and he told me what he found out after talking to the other pilots who saw the crash. Roy was a Naval Aviator instructor in Pennsicola. He went to Victorville AAB after the crash and talked to everyone he could. The mishap report say's nothing about practicing touch and go landings at Hawes Aux 4, but that is exactly what they were doing. She wasn't supposed to be No 2 that day, her room mate had a toothache and couldn't go. She also was not rated for the B-25 and had no hours on her log book. She wanted the stick time and things went south. The pilot was given 100 percent at fault. As far as stateside for WW2 the number is around 60,000 deaths. That is about half of all USAAF fatalities in WW2. I have a mishap report out of Rice that talks about the pilots and aircrew refusing to fly after 5 B-24 bombers crashed within several days with in sight of the base. That's 50 guys dead in about a week and everyone saw it, Just horrible. They had to address the issues and they talked about it in the mishap report. Unheard of! It's the only mishap report  I have that does that. Issue 1) The aircraft they were training in were returnee's from combat missions over seas. They had high hours on them and had been patched together many times. 2) Sub standard Aviation gas. The high octane stuff was going overseas and the low grade stuff was used for training. Sulfur build up fowled the plugs. 3) Sand. Being located in the high desert Rice was subject to sand storms that fowled up everything. 4) The ground crews were making bad mistakes like leaving rags and tools in engine parts or leaving oily rags in the engine area. The combination of these things along with aircrews in training and at low altitudes were the lead up to 50 guys dying in about a week. I had never heard of these things until I read that report. So, John I also talk to Taigh. I think you know him. I have run things past him for his take on what may have gone wrong in my B-24 mishap reports. By the way thanks for letting me crawl around that bird at the Hawthorn Air show. That was allot of fun! Do you  still fly it?

Link to post
Share on other sites

Good to hear from you.

 I am still involved with Executive Sweet and fly it occasionally, but these days I mainly fly Wild Cargo based at the Military Aviation Museum, also known as the Fighter Factory in Virginia Beach, Virginia.



https://militaryaviationmuseum.org/aircraft/wwii-aircraft/



I really enjoy your posts and all the great photos you share!

John



Link to post
Share on other sites

John, That is a nice looking  bird. lucky you! Glad to hear your still looking down at us land lovers.  David

Link to post
Share on other sites
The Rooster

This is an interesting explanation of one engine out in a B25.





Link to post
Share on other sites

Rooster, That was an interesting video. It gave a good insight into it. I would of liked to of known what caused the engine to fade out like it did. In relations to Michell's crash different things were at play. As I recall in my conversation with John about it he was more about the things that needed to be done quickly due to the touch and go and not having altitude. As John pointed out to me the B-25 is a fly by wire and that means you have to have upper body strength to mule things, no hydraulic actuators to help out . When that engine failed at low altitude they were supposed to hard rudder opposite against the failed engine to keep it strait and nose down to pick up air speed and throttle into it then pull up to gain altitude with the airspeed. That didn't happen. The other pilots in the area saw it flat spin down and the crash photo's show a flattened bird, not a nose in impact. That tells me they probably pulled up until they stalled and the running engine put them to a flat spin, but John can speak better to that. Our conversation was many years ago and I might be off on some of what we talked about. Roy told me it was his belief his sister was in control at the time and that played into what happened. The pilot had over 2,000 hours on his book and had he had control of it then it may have been a different story. Many of the things Roy told me about the crash were not in the mishap report. The fact they were doing touch and go's, not just once but many times was not in the report. To read the report you get the impression they were just flying over Grey Butte Aux 4 ( not Hawse like I said before) . The crash was 100 yards in a straight line off the end of the runway. The impact had the nose facing at 9 0'clock to the runway. The left engine made a impact into the ground of about 2 feet while the rest was surface impact. All of it say's flat spin.

Link to post
Share on other sites
TheCrustyBosun
On 2/3/2021 at 8:03 AM, B-17Guy said:



If you want to read a great book, which has a story of fly a B-25 for hours on one engine, I recommend Gen  Henebry’s book about flying in the 3rd Attack Group.



I’ll second that recommendation. I own a copy and am familiar with the particular story mentioned. Good stuff.


Link to post
Share on other sites
The Rooster

Heres a pdf of naval aviation news from 1944. theres an article about cherry point in there and the PBJ / B25

1jan44.pdf

Link to post
Share on other sites
  • 2 months later...
B-17Guy

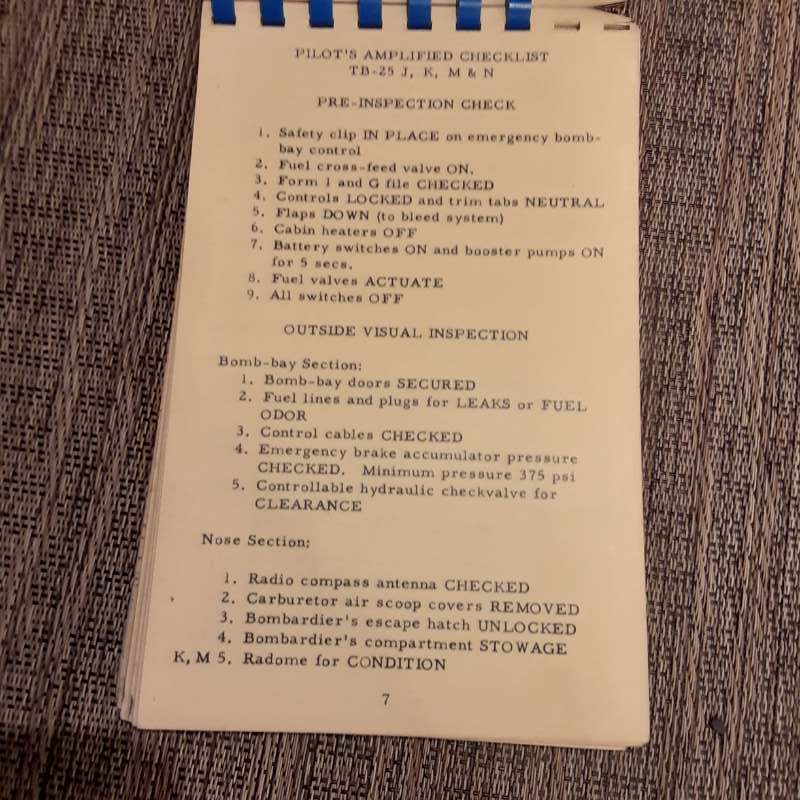

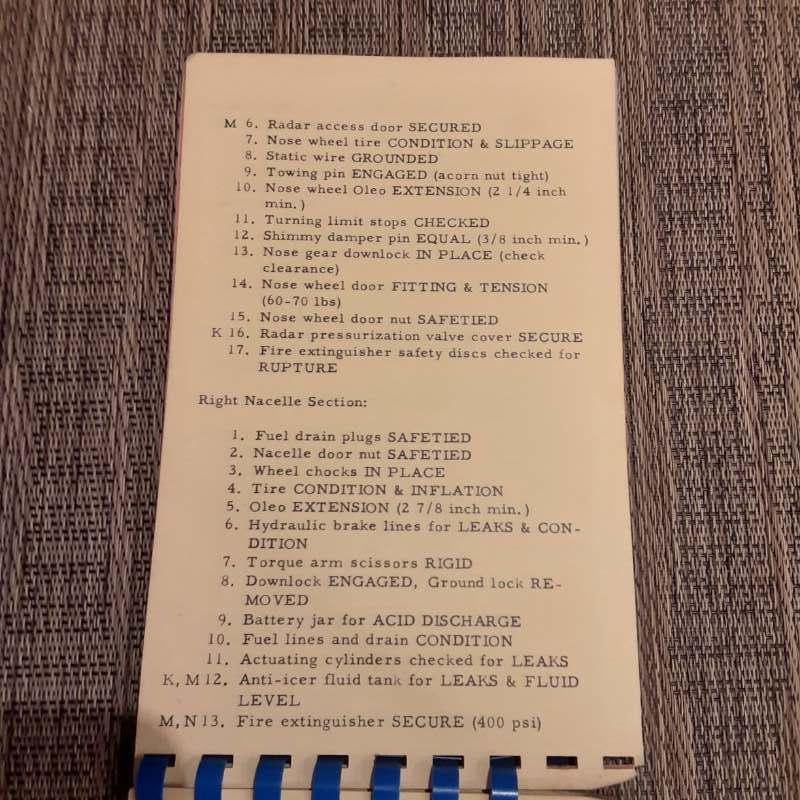

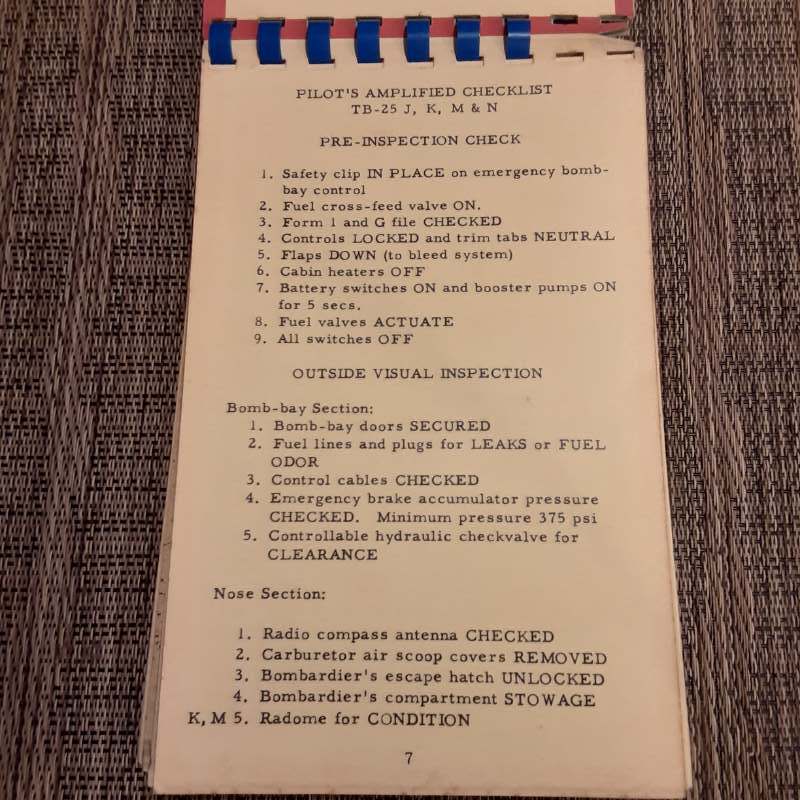

So as mentioned, I also have a "home grown" B-25 checklist and I promised to post a few photos some time ago.

Here is a sample, this one was from Connally AFB Waco, TX in the 1950's.

This booklet does not have emergency procedures as yours, just pre-flight and normals only.

John







Link to post
Share on other sites
On 4/8/2021 at 6:10 AM, B-17Guy said:

So as mentioned, I also have a "home grown" B-25 checklist and I promised to post a few photos some time ago.

Here is a sample, this one was from Connally AFB Waco, TX in the 1950's.

This booklet does not have emergency procedures as yours, just pre-flight and normals only.

John







But yours has photo's!!!! I like photo's!
