Types of WW2 aircrew nav computers?


  • Please log in to reply
4 replies to this topic

#1 Flightpath

Flightpath
  • Members
    • Member ID: 105,780
  • 524 posts
  • Gender:Male
  • Location:Aussie in Norway

Posted 18 November 2019 - 02:20 AM

Hi,

apart from the standard MARK 3A US Navy plotting board and the E6B types, what computers were used by USN aircrew during WW2?

Was the MARK 8 ‘prayer wheel’ used during the war or was it post was issue?



I have the black AN5835-1 type marked US NAVY and a round MARK 8 (but it looks too modern), I almost purchased an older MARK 8 made from what looked like cardboard of some sort but wasn’t sure what era it was.

thanks in advance for your help,



cheers, John


Edited by Flightpath, 18 November 2019 - 02:22 AM.


#2 jerry_k

jerry_k
  • Members
    • Member ID: 369
  • 1,932 posts
  • Gender:Male

Posted 18 November 2019 - 07:53 AM

From what I remember the Mark 8-a was also used in WW2 Mark 3a and 5a plotting board, It should have a contract. But this is a integrated part of the board. The separately Mark 8-a computer is useless I guess...



Here is a photo of Mark 8-a computer on Mark 3a plotting board: http://www.usmilitar...ttach_id=777991





Regards,

Jerry


Edited by jerry_k, 18 November 2019 - 07:55 AM.


#3 Flightpath

Flightpath
  • Members
    • Member ID: 105,780
  • 524 posts
  • Gender:Male
  • Location:Aussie in Norway

Posted 18 November 2019 - 08:12 AM

Thanks,
I forgot that the MARK 8A was used on the plotting board.
I wonder what the earliest MARK 8 not mounted on the plotting board was.
Cheers, John

#4 jerry_k

jerry_k
  • Members
    • Member ID: 369
  • 1,932 posts
  • Gender:Male

Posted 19 November 2019 - 01:32 AM

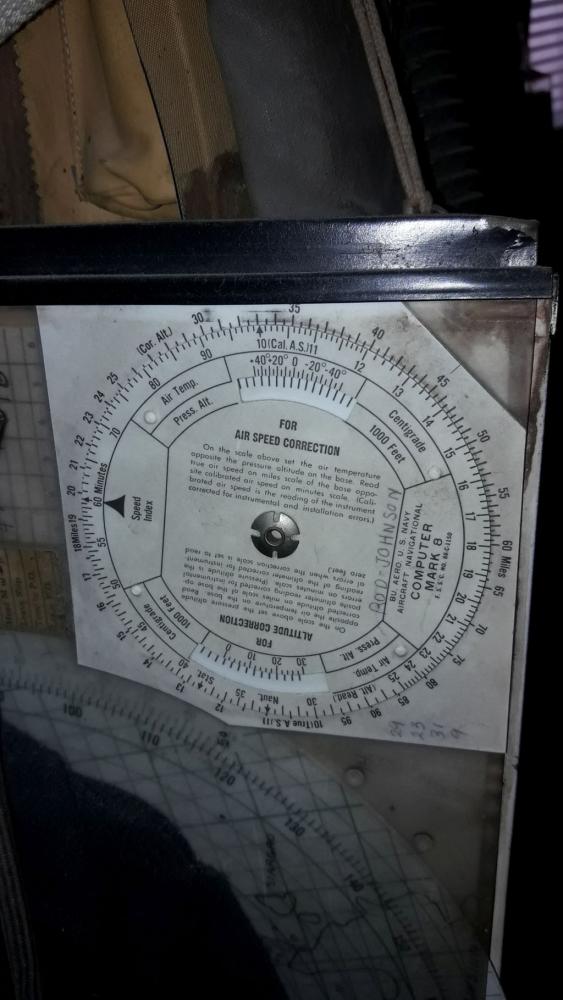

I checked my MK3a board and it got a Mark 8 computer attached. But saw a example with Mark 8-a also.



Im not if they used a separately Mark 8 or Mark 8a computer? Maybe in a multi-engines aircraft, for sure not in the single engine aircraft!



Cheers,

Jerry

Attached Images

  • 20191119_074805.jpg

Edited by jerry_k, 19 November 2019 - 01:32 AM.


#5 Flightpath

Flightpath
  • Members
    • Member ID: 105,780
  • 524 posts
  • Gender:Male
  • Location:Aussie in Norway

Posted 02 December 2019 - 08:38 AM

Hi,

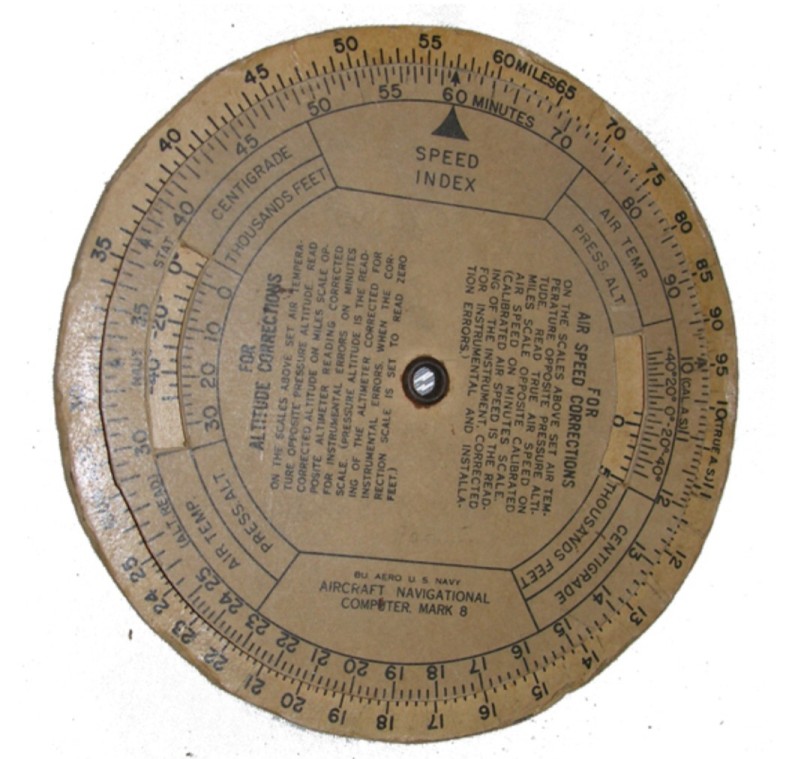

I finally found the MARK 8 that I had seen on the net, seems to be made of card of some sort and quite old looking, the only MARK 8 I have seen not on a plotting board.....lots of later MARK 8A metal computers about, with and without the tabs around the edge.

US Navy Mark 8 computer. 75%.jpg

Edited by Flightpath, 02 December 2019 - 08:46 AM.
