My F-4 Phantom MB MK-H7 Ejection Seat


  • Please log in to reply
9 replies to this topic

#1 graffspee

graffspee
  • Members
    • Member ID: 8,047
  • 68 posts
  • Gender:Male
  • Location:Florida USA

Posted 08 September 2018 - 05:40 AM

I just acquired this Ejection Seat from an USAF F-4 Phantom. I have always wanted one and could not pass up the opportunity to get it. It is pretty much complete for the most part. It is missing a few small things like the green Oxygen knob and one of the lap belts on the survival kit for starters. I also want to replace the cover for the lumbar back pad. It is in bad shape. The padding is good but the cover is shot.

I am also going to have to find a manual for it. I have been able to attach some of the parts and figuring out where they go by looking at pics but I can only go so far with that...

f-4 seat.jpg






#2 TLeo

TLeo
  • Members
    • Member ID: 5,081
  • 2,730 posts
  • Gender:Male
  • Location:North Carolina

Posted 08 September 2018 - 07:10 AM

I love that! That is a great item to obtain and especially in the good shape it appears to be in.



#3 graffspee

graffspee
  • Members
    • Member ID: 8,047
  • 68 posts
  • Gender:Male
  • Location:Florida USA

Posted 08 September 2018 - 07:43 AM

I love that! That is a great item to obtain and especially in the good shape it appears to be in.



Yea, It is in great shape and the guy said it is exactly the way it was when they pulled it from the plane.Its cool also that its the pilots seat and not the Aft seat too.  I have looked up the history of the aircraft and it was taken out of service in 1996 and used as a target drone over the Nevada test range. I grew up around F-4's at MacDill AFB when I was a kid and my grandfather was still in the Air Force. Its always been my favorite 60's fighter. I was so happy to be able to own a seat from one. Just need to track down the few things its missing which are small items but seem to be difficult to find...



#4 mohawkALSE

mohawkALSE
  • Members
    • Member ID: 11,373
  • 612 posts
  • Gender:Male
  • Location:USA

Posted 18 September 2018 - 01:41 PM

Agreed, its def cool to have a Forward seat.  Most you see for sale are AFT marked.  I noticed one thing, the risers are from a Navy seat or it was missing the riser Koch fittings and someone added the USN type.  The USAF riser Koch fittings would be a male fitting whereas the USN are a female.



#5 F-4phan

F-4phan
  • New Members
    • Member ID: 206,296
  • 3 posts

Posted 10 December 2018 - 09:31 PM

Graffspee have you found the USAF harness fittings for the seat yet, how about a trade, your Navy fittings for a set of Navy ones.



#6 67Rally

67Rally
  • Members
    • Member ID: 9,529
  • 3,272 posts
  • Gender:Male
  • Location:Washington State

Posted 10 December 2018 - 10:41 PM

Boeing surplus has these for sale right now for only 12.5 large!

https://www.boeingst...eat-iii?ss=paid

If I had the coin and the room, I'd be all over one. I got to the fleet just in time to see the last of the Phantoms in service.

Edited by 67Rally, 10 December 2018 - 10:51 PM.


#7 F-4phan

F-4phan
  • New Members
    • Member ID: 206,296
  • 3 posts

Posted 11 December 2018 - 08:28 PM

I think it is outrages what the Boeing store is selling those seats for (another one sells for $19,500), which are not in the best condition, incomplete, and the more expensive one with the wrong fittings (USN riser fittings instead of USAF even though it is a USAF seat. You can find seats that are a lot nicer on Ebay for a  lot less than those.

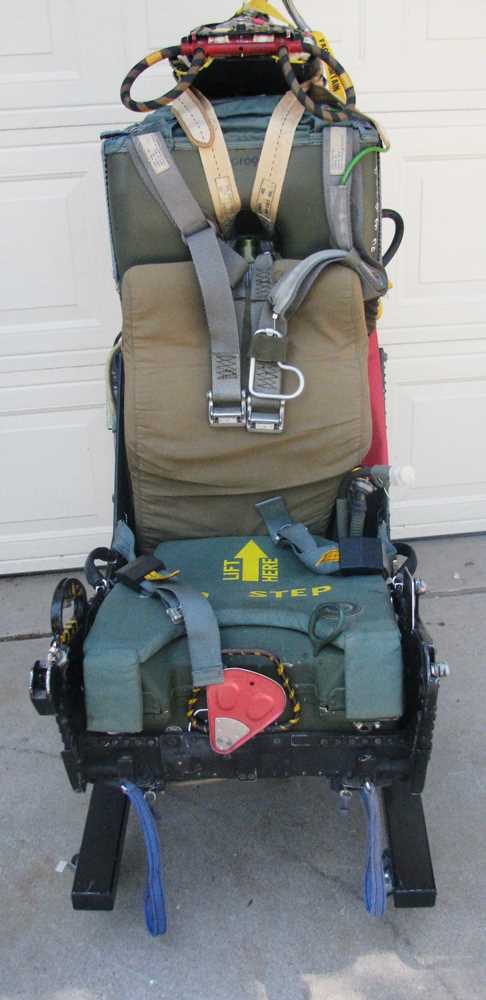

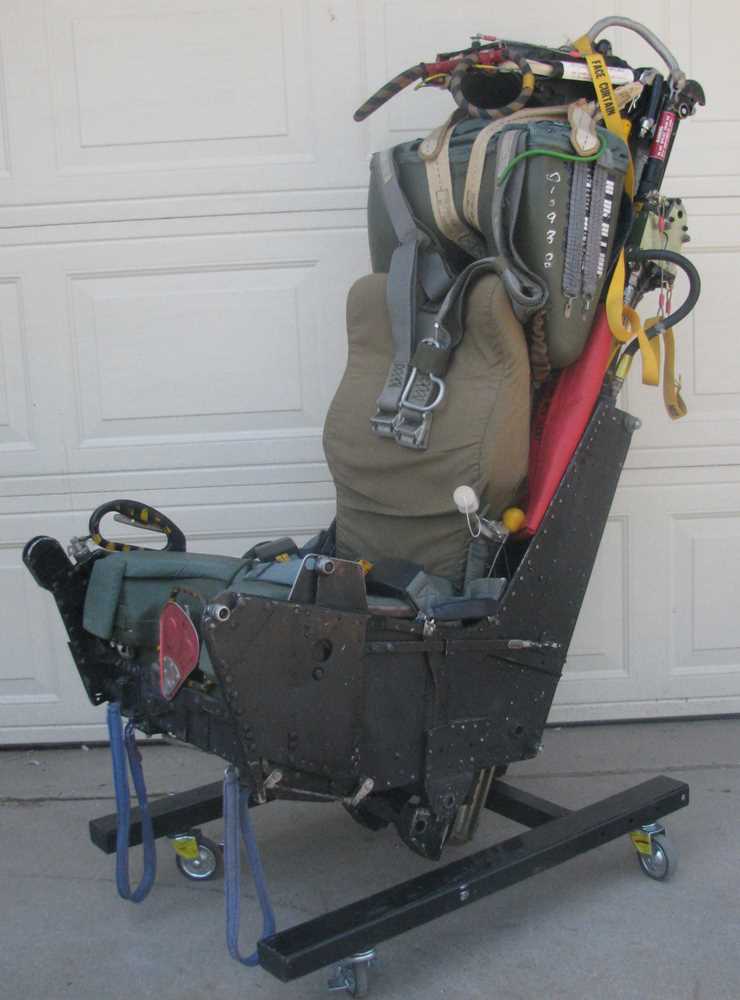

I'm attaching a couple of pics of the USN MB Mk.7 seat that I have and which I will be selling soon.



Front com.jpg   IMG_0466 com.jpg

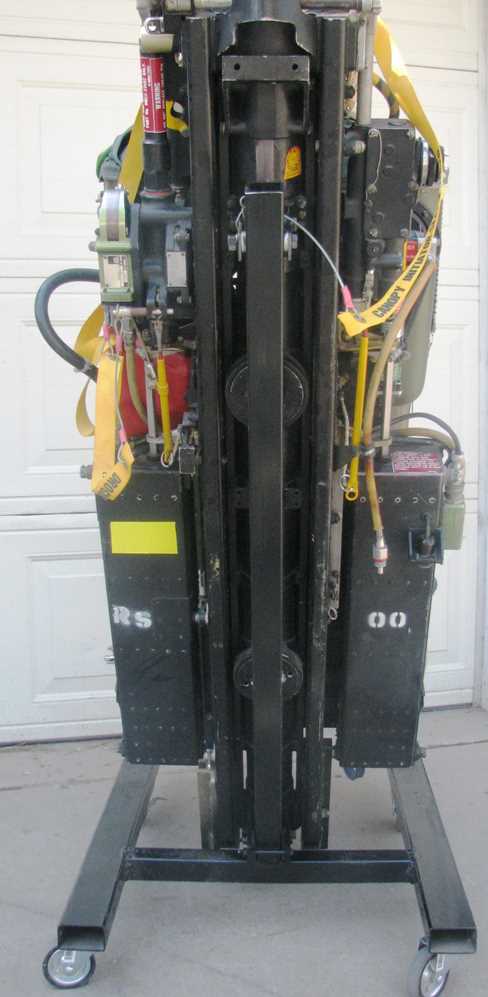

Rear com.jpg



#8 phantomfixer

phantomfixer
  • Members
    • Member ID: 155,518
  • 2,424 posts
  • Gender:Male
  • Location:Dover DE

Posted 12 December 2018 - 01:32 PM

Very cool...Drooling....just saw this thread...  Needs a red pin bag and the thigh and ankle straps



#9 MWalsh

MWalsh
  • Members
    • Member ID: 440
  • 5,698 posts
  • Gender:Male
  • Location:With the Goat I stole from under Doyler's bridge

Posted 28 January 2019 - 07:32 AM

F-4phan - is the stand which your seat is on, an original US military stand used when maintaining the seat, or is it a custom made stand for display use?



Thanks!





I think it is outrages what the Boeing store is selling those seats for (another one sells for $19,500), which are not in the best condition, incomplete, and the more expensive one with the wrong fittings (USN riser fittings instead of USAF even though it is a USAF seat. You can find seats that are a lot nicer on Ebay for a  lot less than those.

I'm attaching a couple of pics of the USN MB Mk.7 seat that I have and which I will be selling soon.



attachicon.gifFront com.jpg  attachicon.gifIMG_0466 com.jpg

attachicon.gifRear com.jpg





#10 graffspee

graffspee
  • Members
    • Member ID: 8,047
  • 68 posts
  • Gender:Male
  • Location:Florida USA

Posted 09 April 2019 - 09:47 AM

Graffspee have you found the USAF harness fittings for the seat yet, how about a trade, your Navy fittings for a set of Navy ones.



Just signed on to this site and saw your post. I had not signed on in a while. If you have a set of USAF harness fittings I would be willing to do a trade. I am also looking for a Sear Key. I am missing one for the initiator on the lower right side of the seat,



Edited by graffspee, 09 April 2019 - 09:50 AM.
