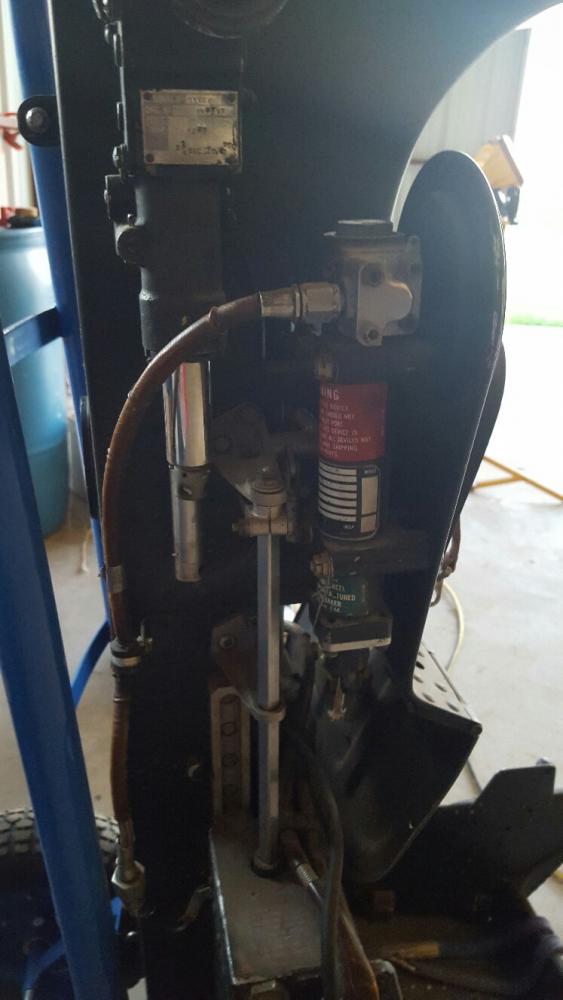

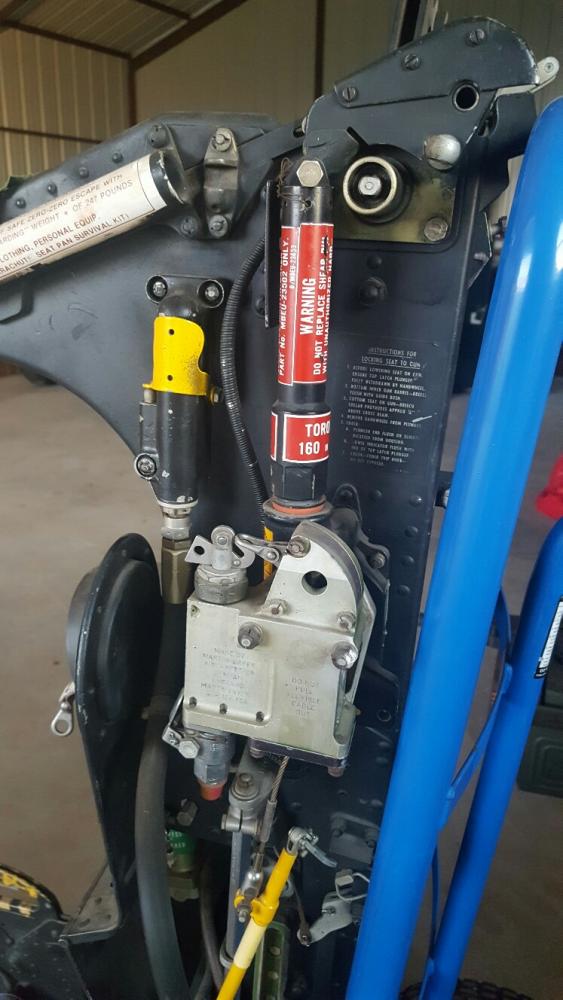

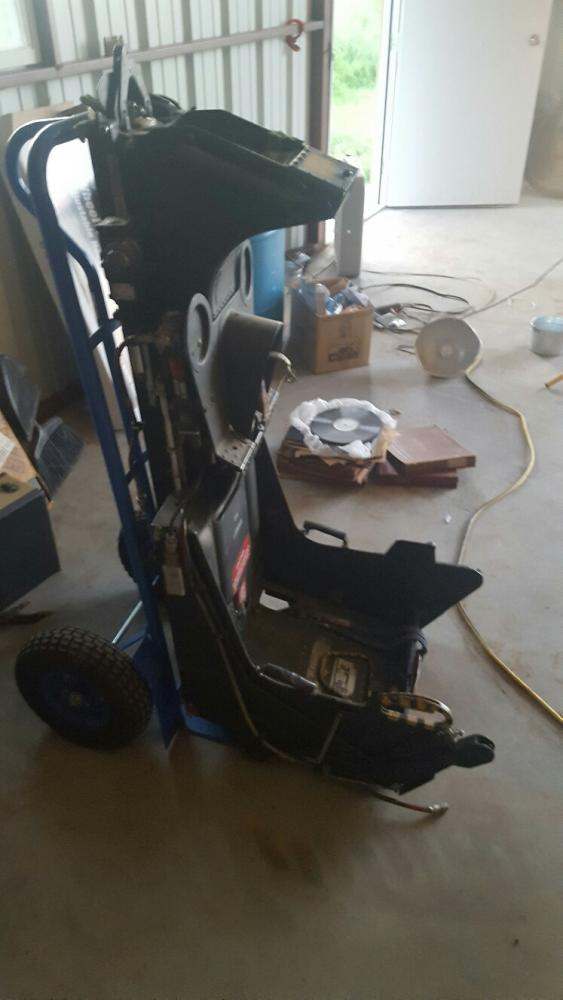

July 25, 20178 yr #1 Greetings group! Here are some photos of my MB H 7 bang seat i have started working on. I am in the process of gathering all the visible components for it so it appears as it would have to a pilot. Eventually i will put a pilot together as well. First the seat, then the pilot. Anyone have any spares for this Navy aft seat from an F4 Phantom II?
July 25, 20178 yr #4 Some parts are the same, the parachute pack for one. The risers are the same except you need the female Koch fittings and the SEAWARS fittings. All of the deployment straps for the drogue chute are the same. The back pad is the same. The drouge chute and it's box are the same. The overhead pull rings are the same. The straps that hold the parachute pack in place are the same. All of these things are for sale at Flighthelmet.com and they show up on ebay from time to time. IH
July 25, 20178 yr #5 Very cool project. It's going to be an expensive one I think Good luck and post some photos of your progress! -Derek
