B-52D Pilot ejection seat


hink441
 Share

Recommended Posts

hink441

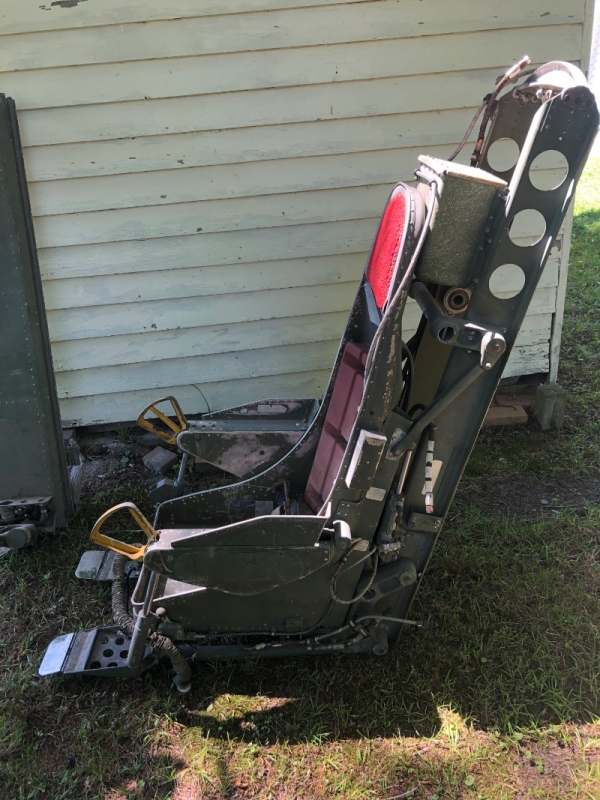

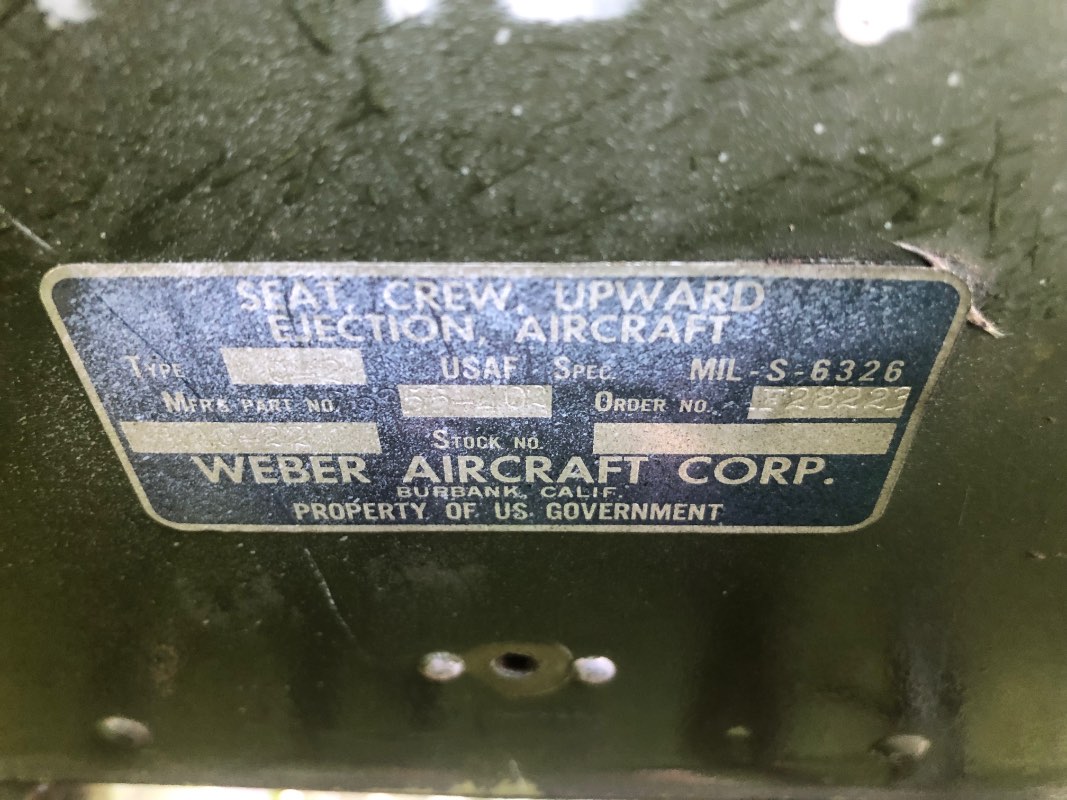

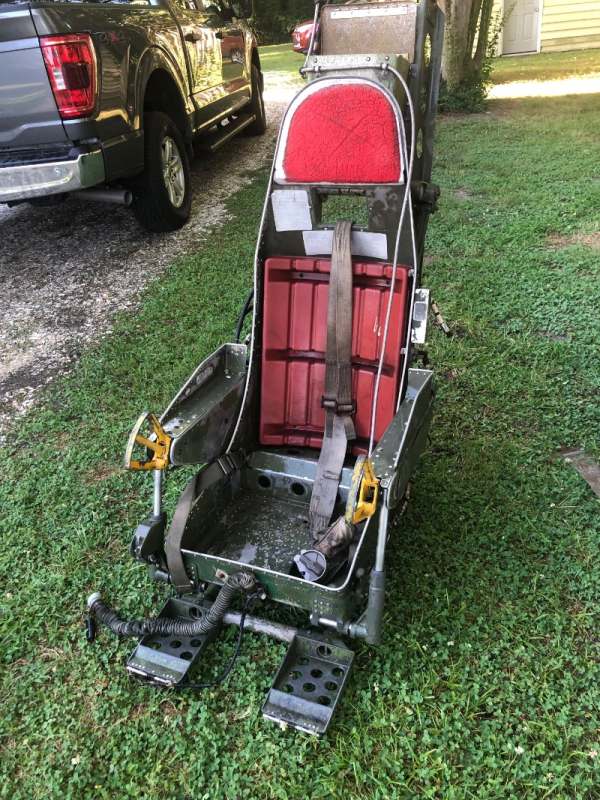

Just obtained a new project. A B-52D ejection seat made by Weber. Needs a lot of parts and I want to try and make this one presentable but not perfect.


Here are some pics.








Link to comment
Share on other sites

Manchu Warrior

It actually looks rather presentable from where I'm sitting. That is pretty dang cool

Link to comment
Share on other sites

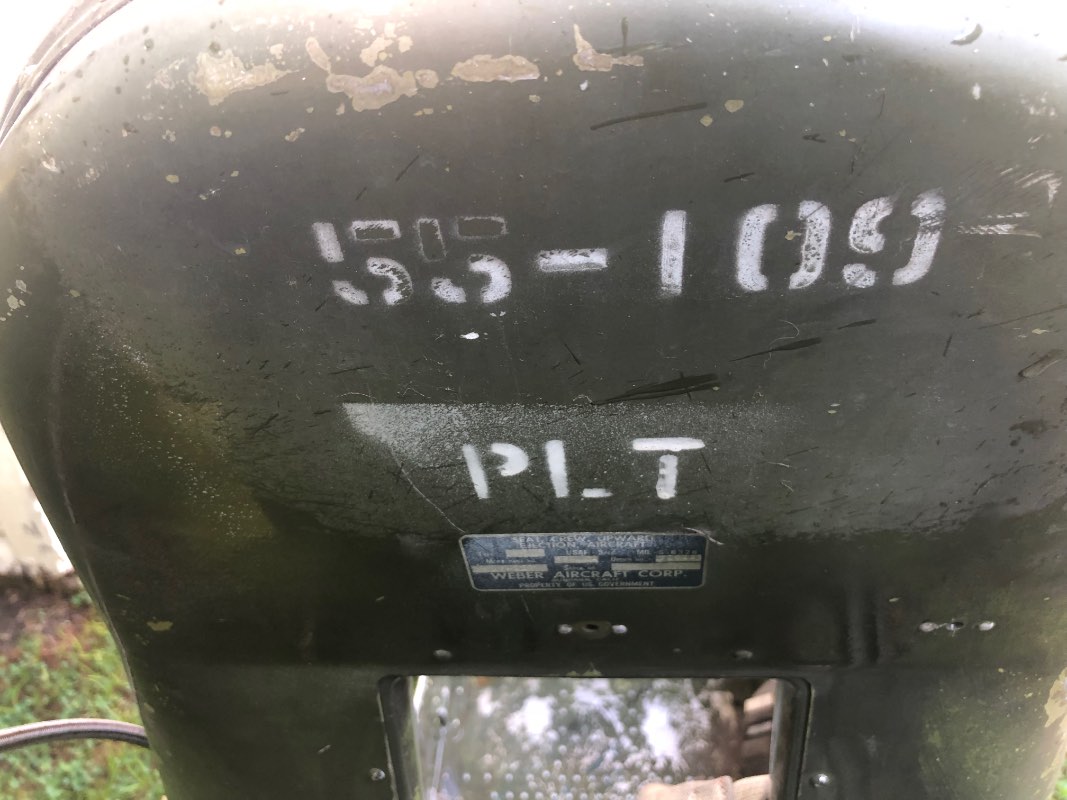

Nice, Does the PLT on the back indicate Pilot? Keep us updated on your progress.

Link to comment
Share on other sites

hink441

Thank you.


Yes the “PLT” indicates this seat was the pilot’s seat.


The aircraft serial number is 55-0109. Built in 1955. Sent to the boneyard in 1974. I would like to learn more about the aircraft but that will take some digging. If anyone has info on this aircraft, I would love to see it.

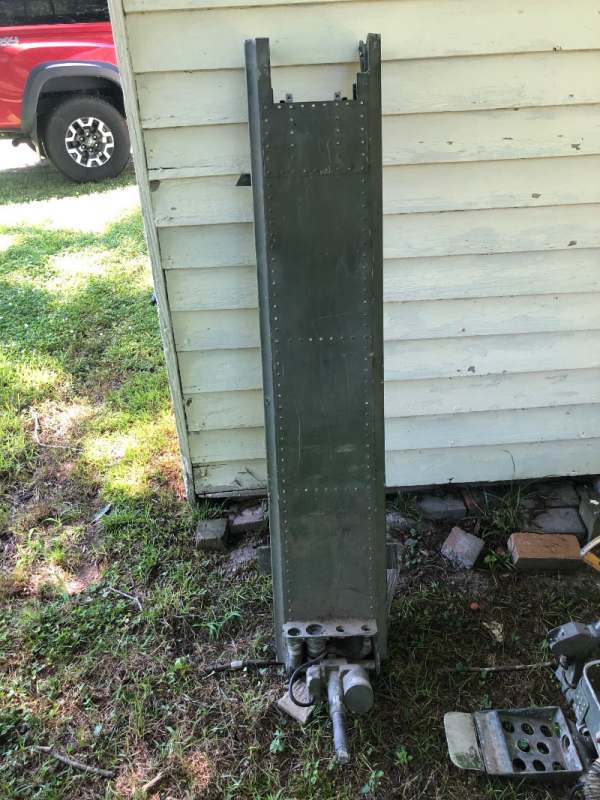

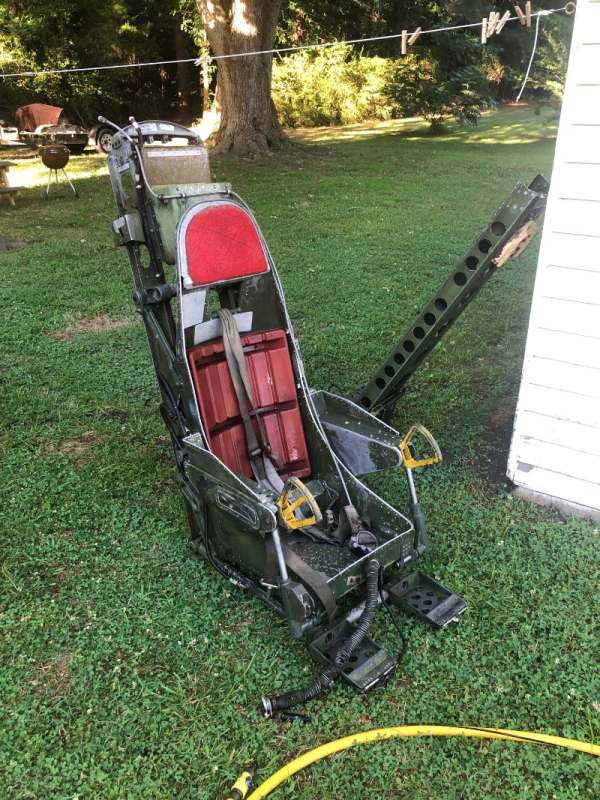

This seat also came with the rail. Lucky to have that!


Chris

Link to comment
Share on other sites

phantomfixer

Looks like all you need is a survival kit, cushion, Playboy, and cowboy hat...

great seat...

Link to comment
Share on other sites

hink441

Thank you.


Seat will need some serious corrosion control work to bust the rusted hardware. I think it has great potential though.


Chris

Link to comment
Share on other sites

hink441

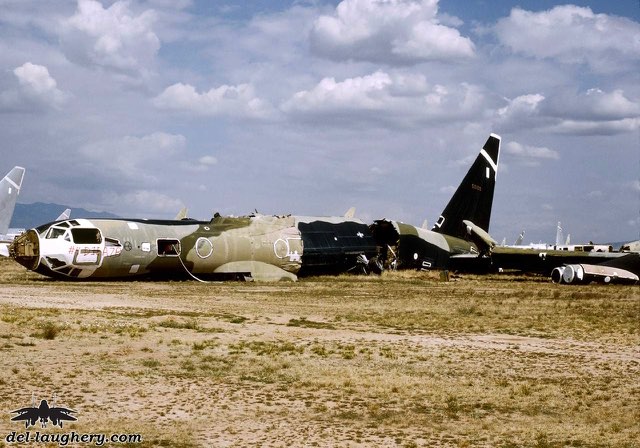

This aircraft was cut up in March of 1994 after sitting in the boneyard for 16 years.


Photo from the internet





Link to comment
Share on other sites

mohawkALSE

Def a nice find to find the actual pilots upward ejecting seat.  Seems most of the time people only find the downward ejecting seats.  I forget, do these older Weber seats use the MD-1 seat survival kit?   I like those original tall tail 52s with the normal noses (no sensors)

Link to comment
Share on other sites

hink441

I am not sure on the type of seat kit required.  It looks like a MD-1 would fit. I have to read up on this seat and learn about all the part requirements. Should be fun😂.





Link to comment
Share on other sites

hink441

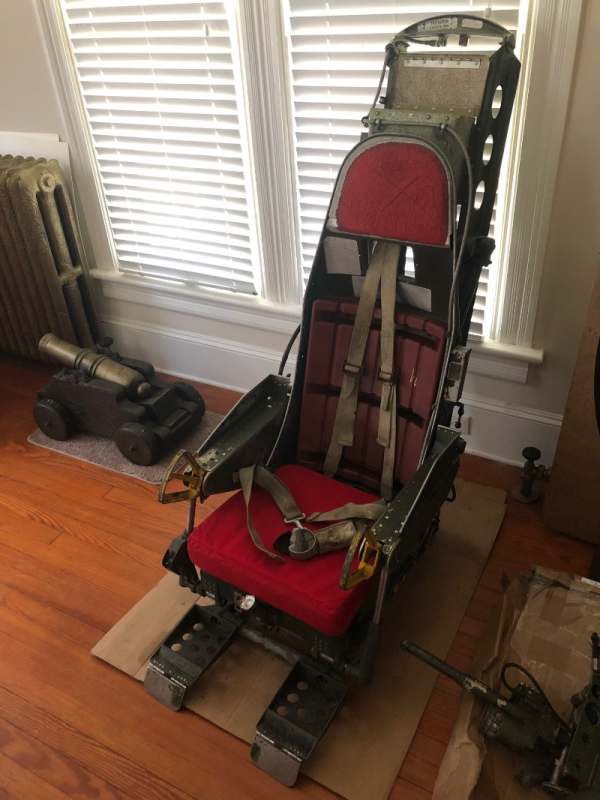

Just added a seat cushion in the seat pan. Pretty comfortable, better than sitting on a survival kit😂


Also have completed a good thorough clean up of the seat. I am pleased with the progress so far.


Chris





Link to comment
Share on other sites

  • 2 weeks later...
hink441

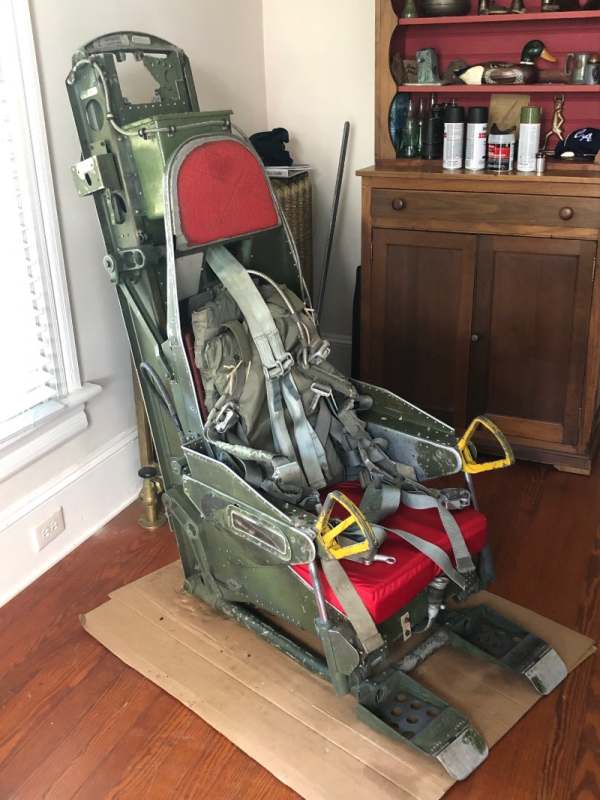

Placed an old 1960 back pack parachute in the seat. I know it doesn’t belong there but I think it looks okay.

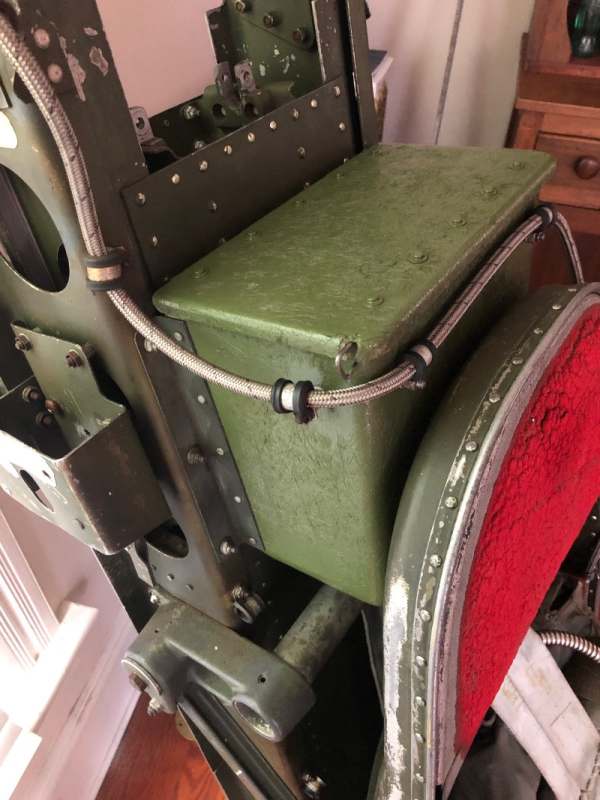

I also replaced the shoulder seat straps. I then painted the rope box and installed a new hinge pin on the rope box. Starting to look better now.

Installed the seat onto the rail.


Still have to find a lap-belt that is in better shape.




Link to comment
Share on other sites

mohawkALSE
7 hours ago, hink441 said:

Placed an old 1960 back pack parachute in the seat. I know it doesn’t belong there but I think it looks okay.


I also replaced the shoulder seat straps. I then painted the rope box and installed a new hinge pin on the rope box. Starting to look better now.

Installed the seat onto the rail.


Still have to find a lap-belt that is in better shape.




What exactly is the rope box?  Not too familiar with these older seats but is that for like a cockpit escape rope if you had to egress the jet on the ground?

Link to comment
Share on other sites

hink441

Yes that is exactly what it is used for. Cockpit escape/egress.


When I acquired the seat it had only a small piece of brittle rope left. I replaced the rope but only about 15’ of new rope was added.


Chris
