Coastal Artillery Gun Telephone Box


Recommended Posts

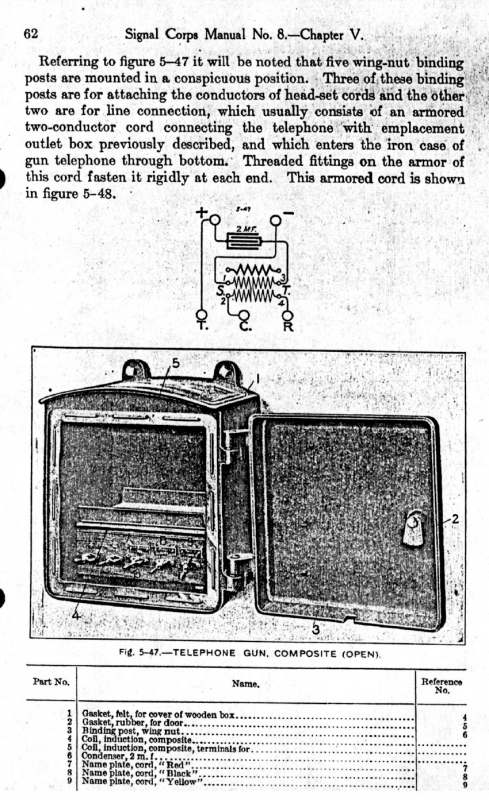

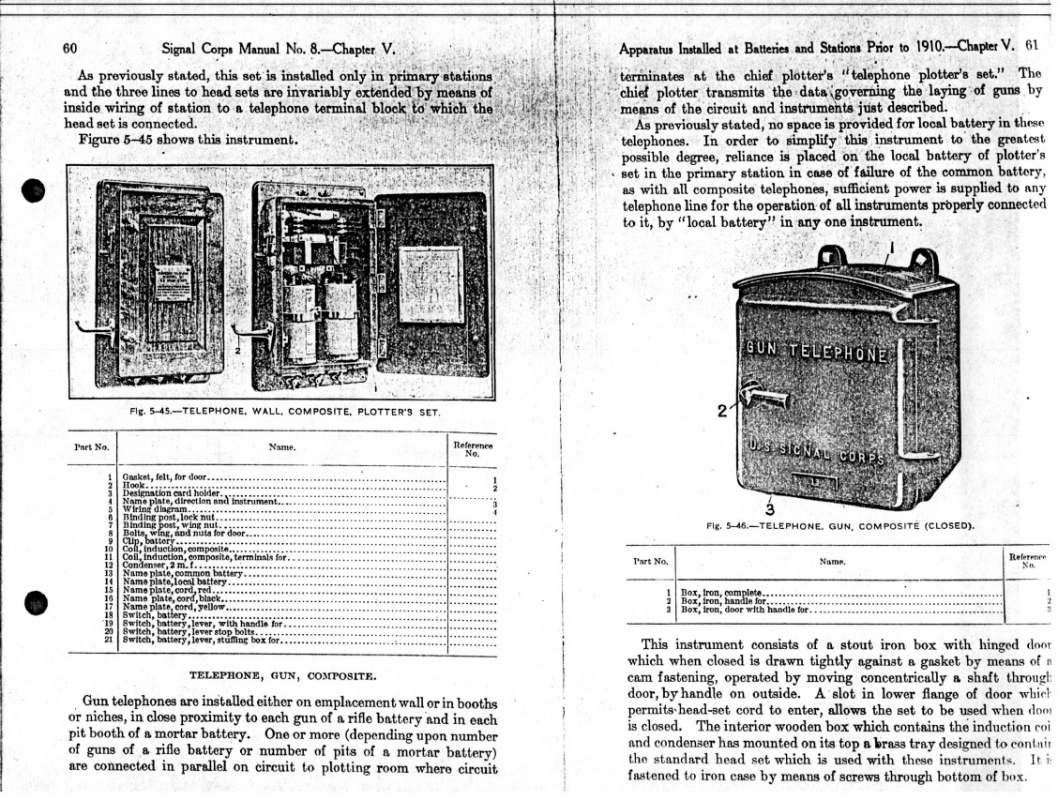

Gun telephone information from the updated Signal Corps Manual No. 8 in 1914 (titled: Installation and Maintenance of Fire Control Systems at Seacoast Fortifications).

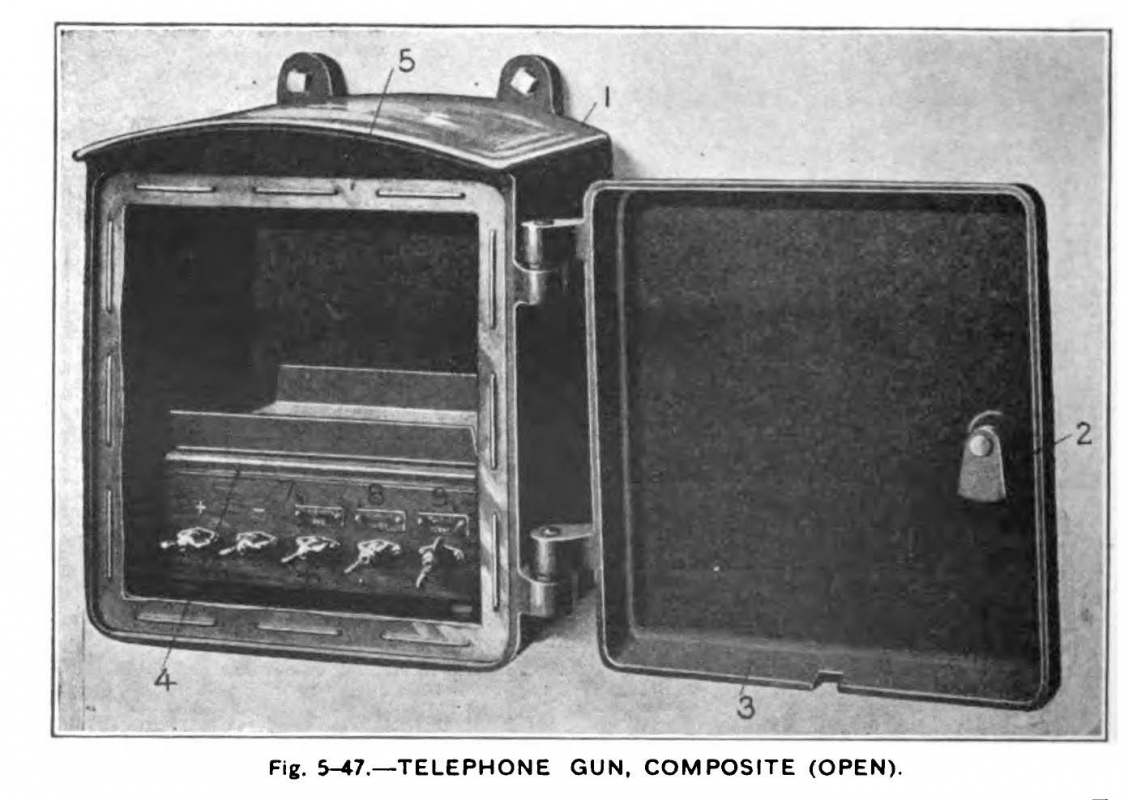

And a clearer photo showing the early style wood cased gun telephone.









1418270726_Guntelephonecompositephone1895withcastironbox.jpg.8defbbd9e50572ddab3e8bd0bdcc07d7.jpg




Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites

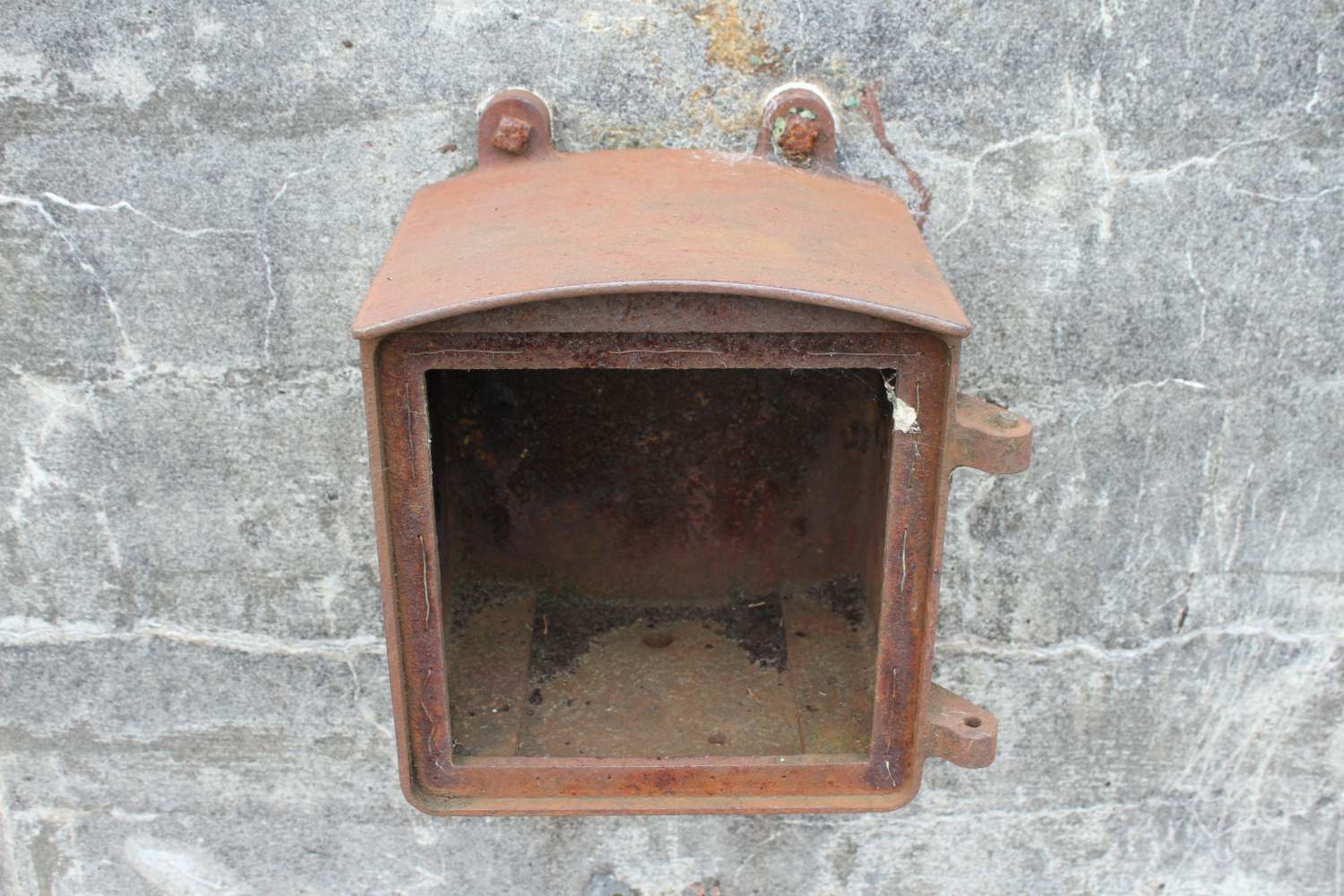

Early style gun telephone box formerly on Battery Pratt (two 6-inch disappearing guns) emplacement no. 1 at Fort Stevens, Oregon (has been removed for safekeeping).

Note side rails for mounting early wood cased telephone on.
This differed from newer iron boxes that had four studs for mounting new style metal cased phones, as shown on the original example in the post.







Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites

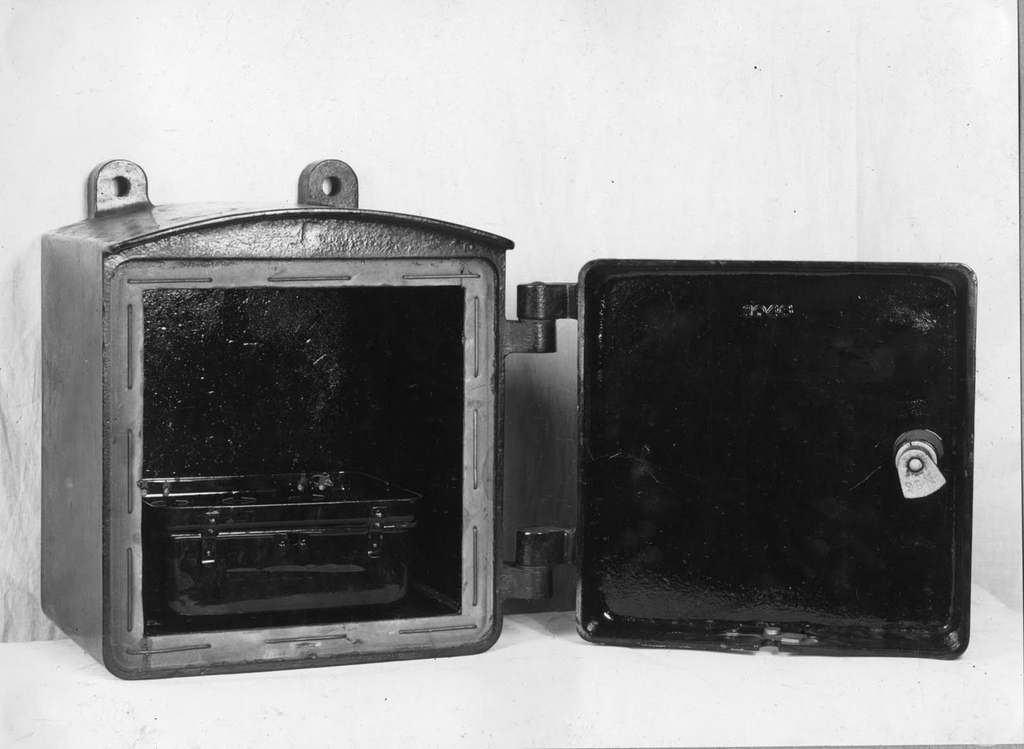

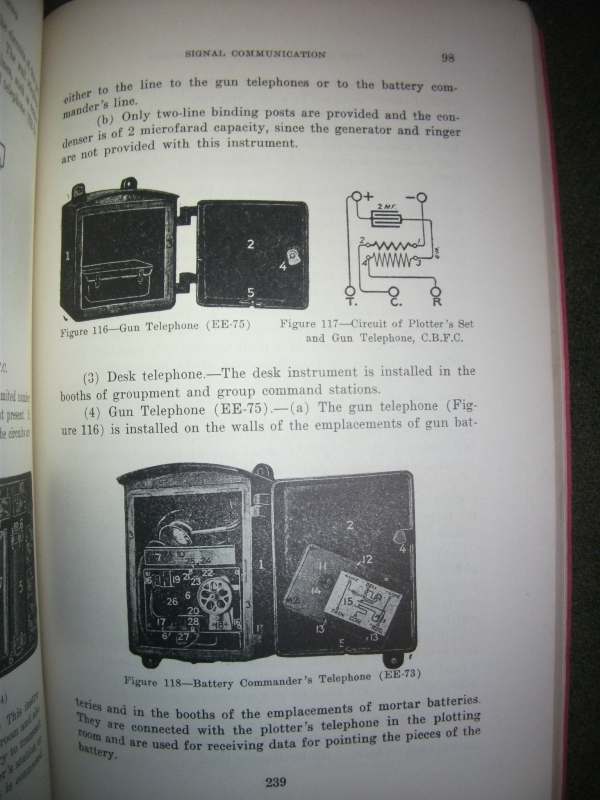

Drawing of gun telephone box with new metal cased phone (called EE-75) from a 1930s Fire Control manual, and a clear photo of the new metal cased phone in gun telephone box (not sure on exact source of this image).




1548729968_Guntelephonecommonbattery1911or12CBFC.jpg.b78e17c4b4eec2c677526e857e473c28.jpg




Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites

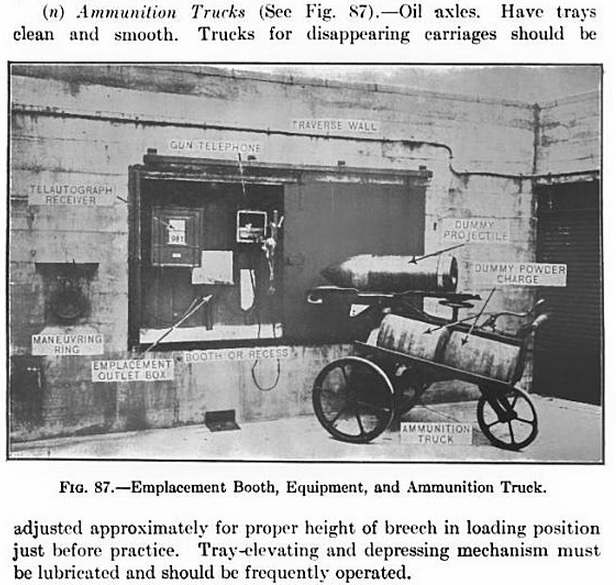

This photo, from "The Service of  Coast Artillery" by Hines & Ward (1910), shows a gun telephone installed in an early niche on an emplacement wall, alongside a telautograph. Early large caliber (8" and up) gun batteries (built 1890s-about 1905) had niches built into them for the fire control communications instruments (telautographs and telephones). The early telephones in these niches were "portable artillery" type telephones. When they phased out of use, being replaced by simpler gun telephones, the gun telephone often went in its place.
Then in about 1911 when the new 1910 system-wide fire control changes went into effect, an order called for all gun telephones to be placed on the left traverse wall of the emplacement (including 6" gun batteries as well). So the gun telephones were moved.
In studying walls of coast artillery gun batteries, instruments move around often, due to changes in fire control systems, new ideas of doing things, and new technologies replacing older items,  etc.

traverse wall recess photo service of CA book 1910.jpg




Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites

Wow, don't think I could ask for a more comprehensive or in depth explanation!  Thanks for thaking the time for uploading all of these great photos.  When I frist bought the box I looked online but found next to nothing about it, now there will be a great reference for it here.  I noticed the photos of the box from Fort Hamilton.  Given the location of where I found my box on Long Island I cant help but imagine it may have come out of Fort Hamilton or even a better chance out of Camp Hero at Montauk.



Rob


Link to post
Share on other sites

The whole subject of fire control equipment is fascinating.  There  was a lot of research and innovation occurring in the early 1900's, communication equipment not being an exception.  The equipment was constantly being evaluated and upgraded as time went on.  It's a fairly complex subject to digest; recommendations for upgrades and implementation did not always follow a straight line.  Funding, requirements to use/exhaust old stock, slow supply lines and unique local conditions led to a lack of black and white standardization of fielded equipment at any given time.

Looking for items related to the Ninth Coast Artillery District and 6th Coast Artillery Regment

Link to post
Share on other sites
  • 1 month later...

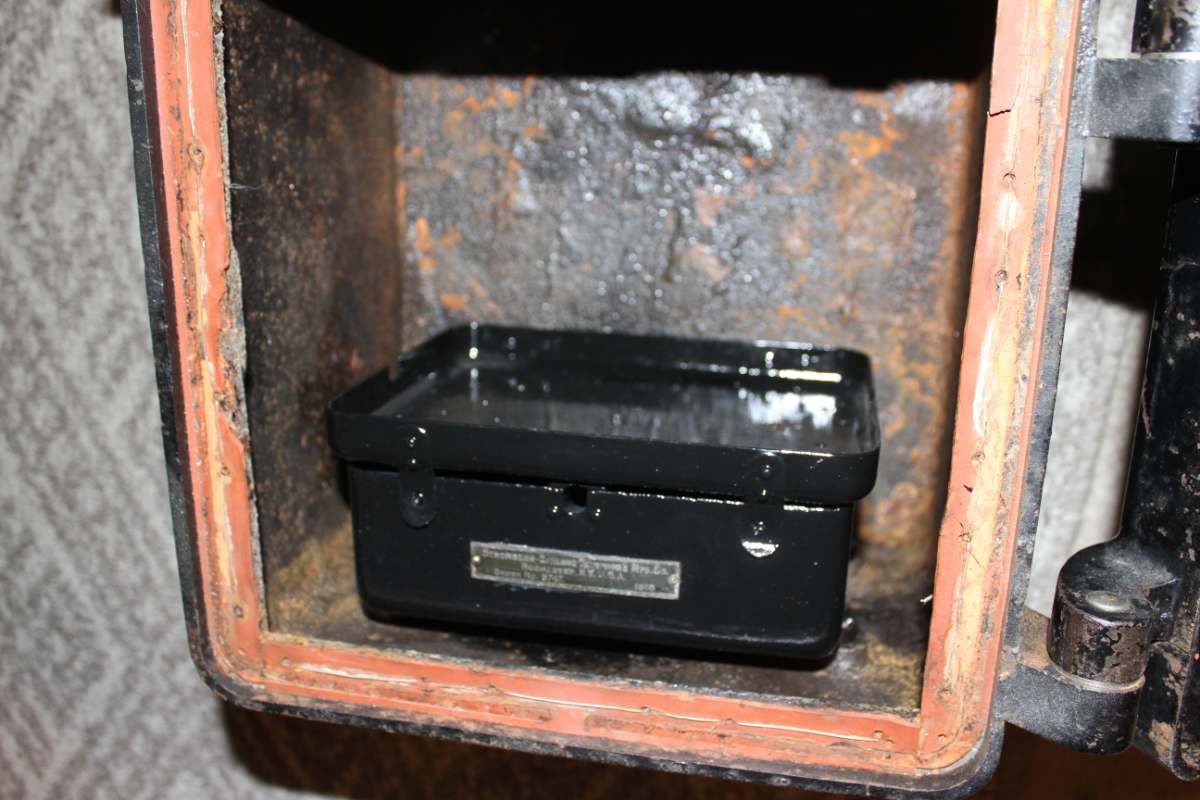

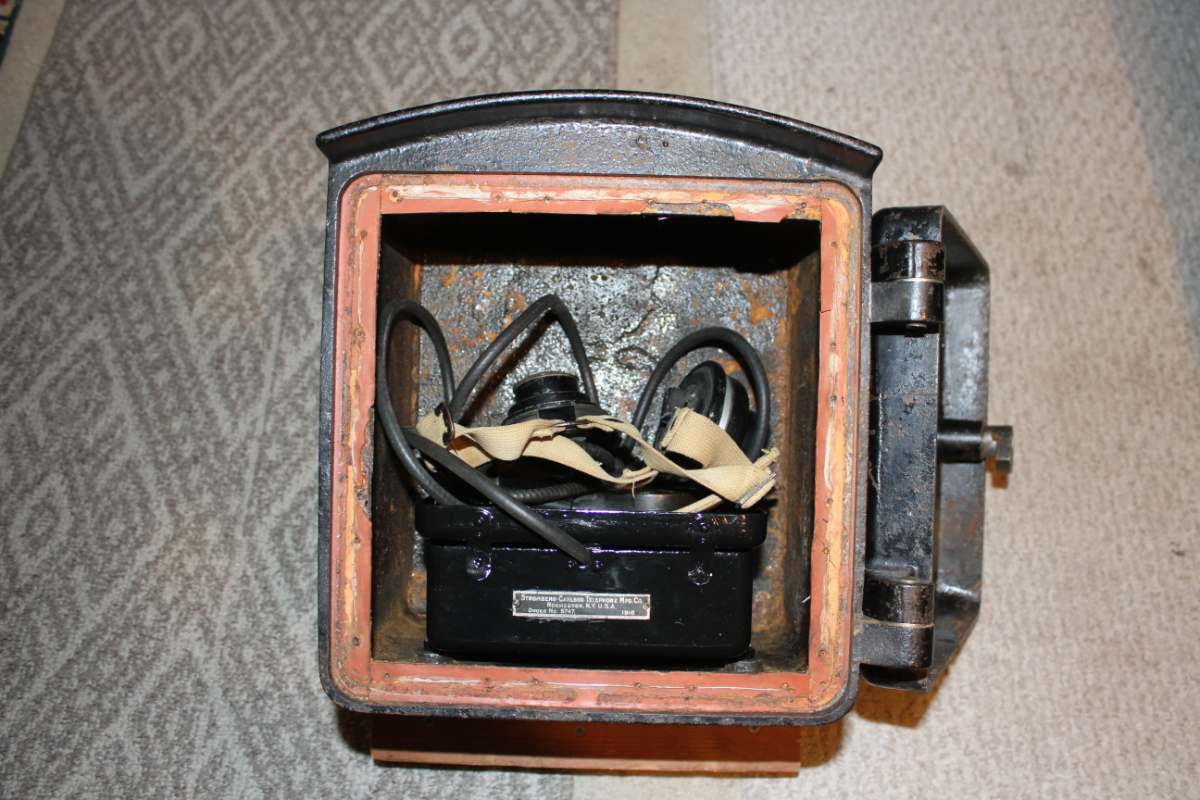

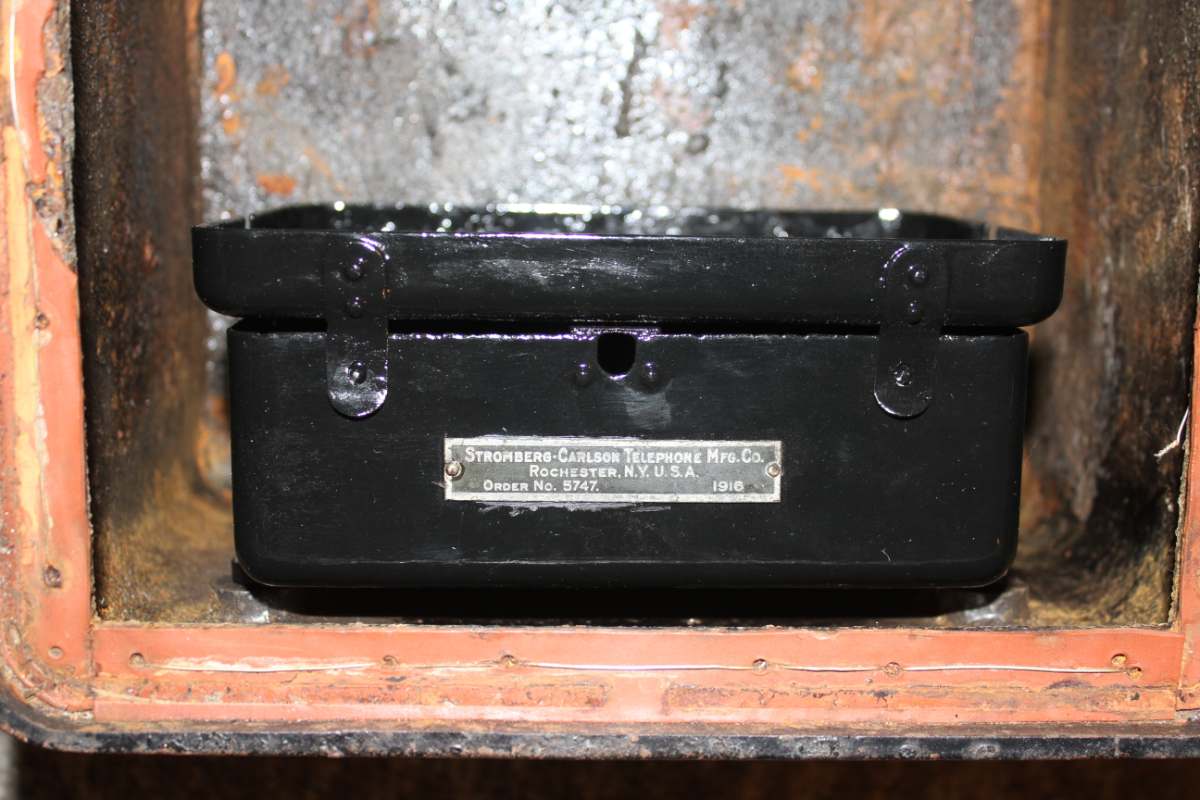

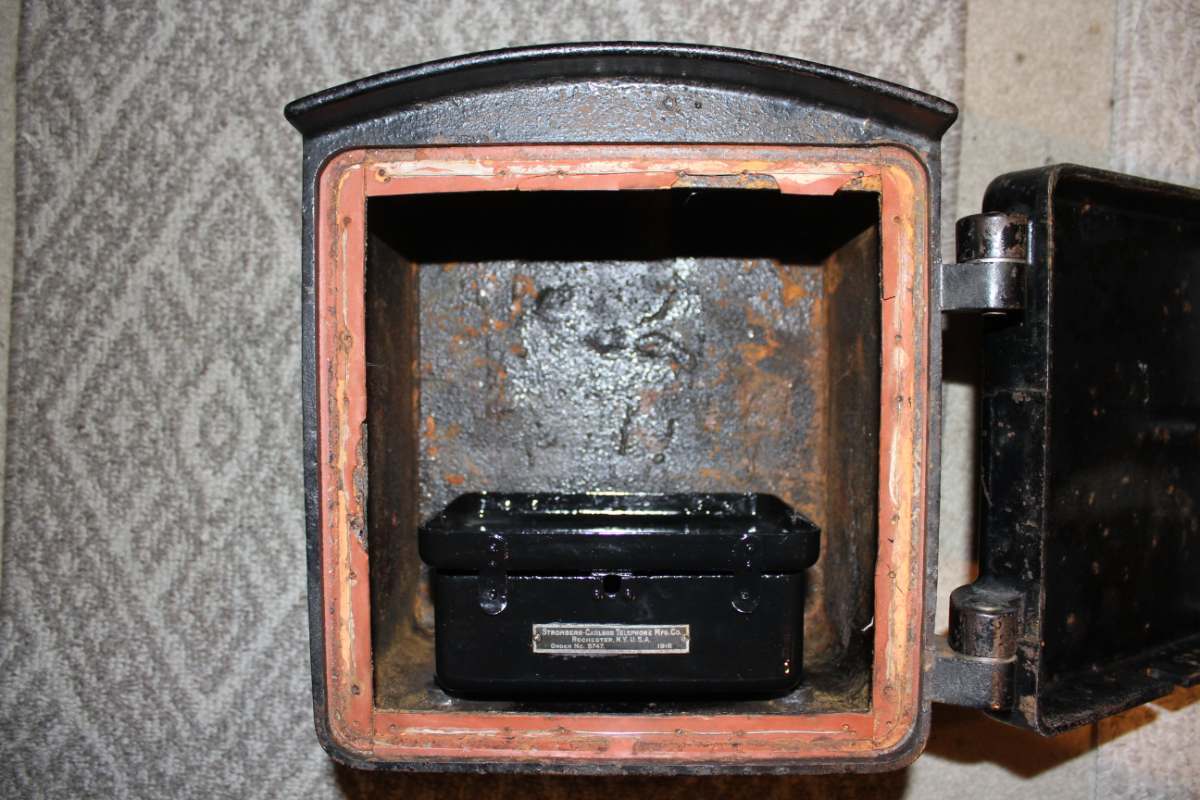

Here are some images I just took of my restored gun telephone metal case. The guts haven't been restored, just the metal case. Also shown is my EE-70 headset (missing an ear cup and the mouth horn for the transmitter though).

















Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites

Good question sundance, I am not sure, I will have to look into that!
Thanks.




Looking for: Washington and Oregon Coast Artillery items

Any items related to the Harbor Defenses of the Columbia River and the Harbor Defenses of Puget Sound, 1860s-WWII. This includes items from Fort Stevens, OR; Ft Canby, WA; Ft Columbia, WA; Ft Worden, WA; Ft Casey, WA; Ft Flagler, WA; Ft Ward, WA; Ft Whitman, WA; Camp Hayden, WA; and the following units that served at these forts:
Columbia River: 33rd, 34th, 93rd, and 160th Companies, CAC; and 18th and 249th Coast Artillery regiments
Puget Sound: 26th, 30th, 62nd, 63rd, 71st, 85th, 92nd, 94th, 106th, 108th, 126th, 149th, and 150th Companies, CAC; and 14th and 248th Coast Artillery regiments

Coast Defense Study Group member & site representative for the Columbia River forts

ASMIC member

Link to post
Share on other sites
