Navy APH-6 Phantom VTAS Visual Target Acquisition System Helmet


  • Please log in to reply
6 replies to this topic

#1 Bob Hudson

Bob Hudson

    Forum Co-Founder (Ret)

  • Administrators
    • Member ID: 2
  • 26,340 posts
  • Gender:Male

Posted 21 November 2018 - 01:18 PM

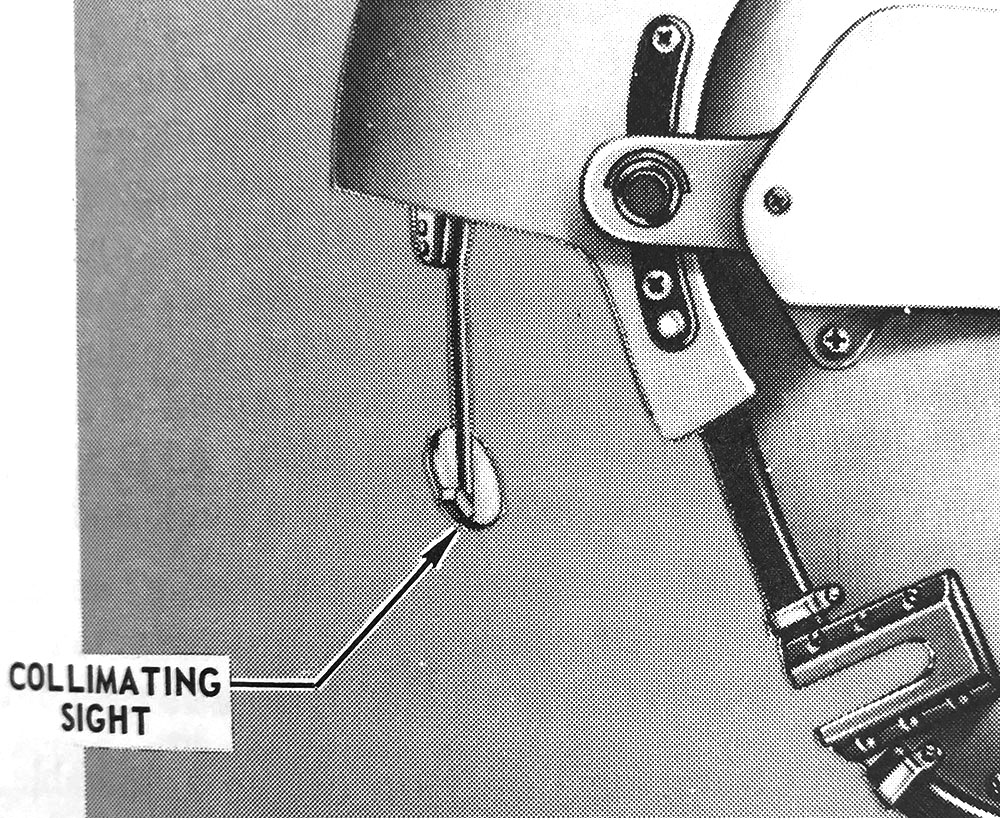

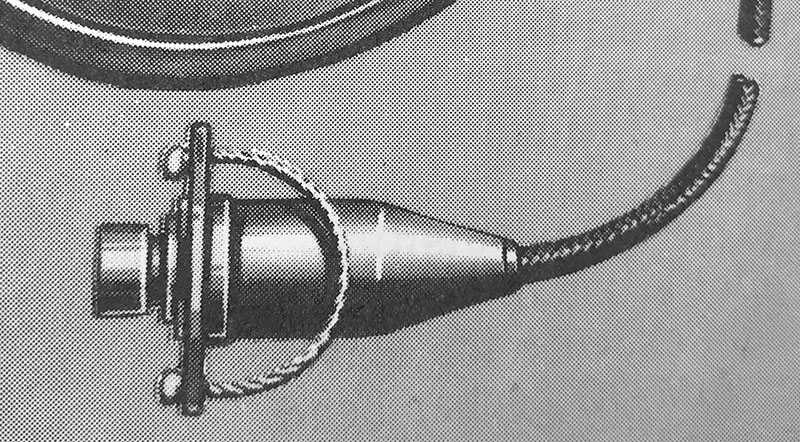

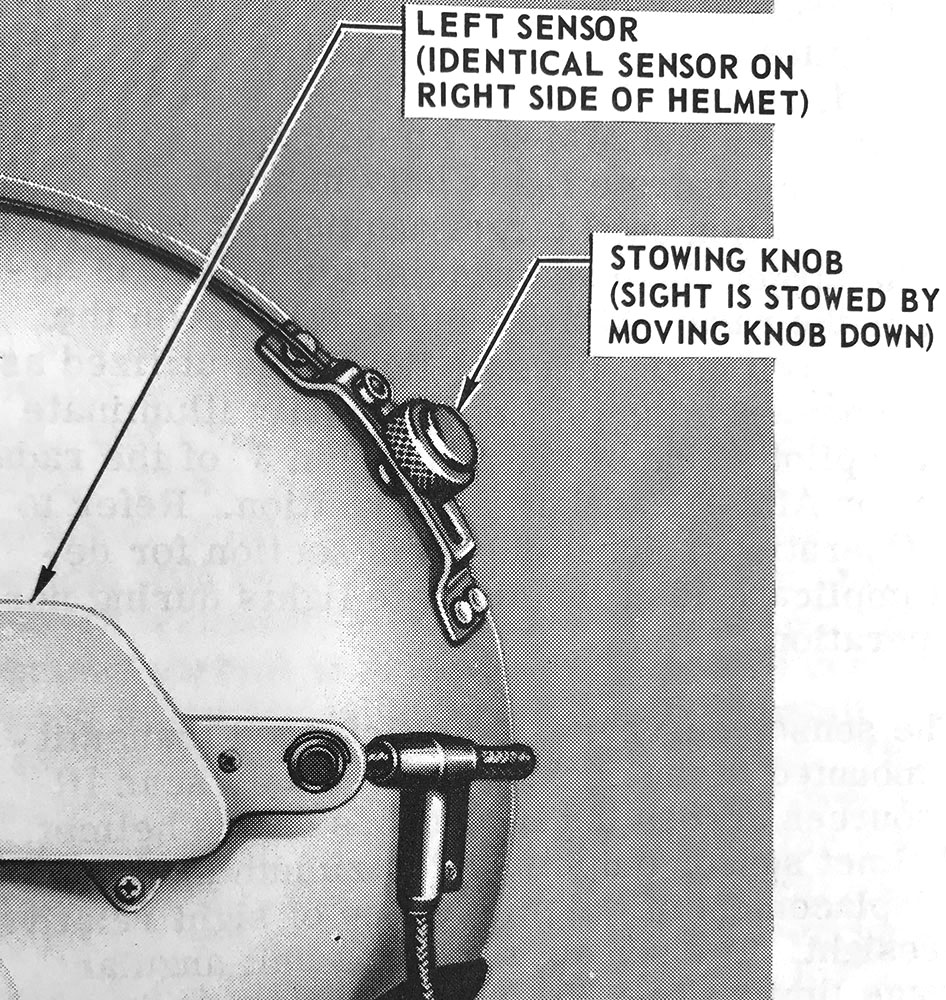

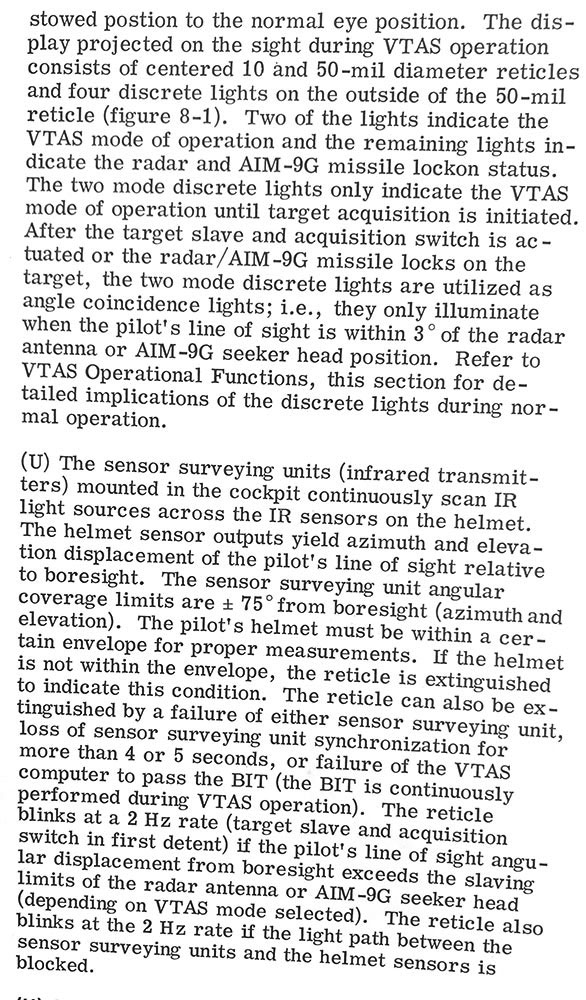

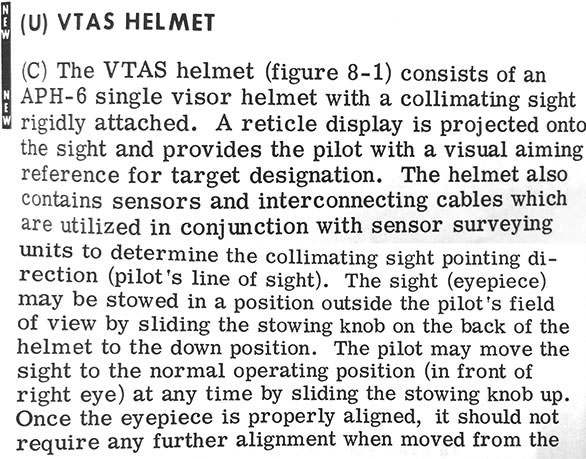

This is the VTAS Visual Target Acquisition System configuration for the Navy's APH-6 single visor flight helmet.



I found this in a tech manual for the Navy's F-4B Phantom. It's always nice to see some detailed operational info, as collectable flight helmets seldom come with users guides,
