M21A1 Ground Signal


  • Please log in to reply
4 replies to this topic

#1 rambob

rambob
  • Members
    • Member ID: 299
  • 1,413 posts
  • Gender:Male
  • Location:NorthEast Ohio

Posted 18 January 2007 - 05:43 PM

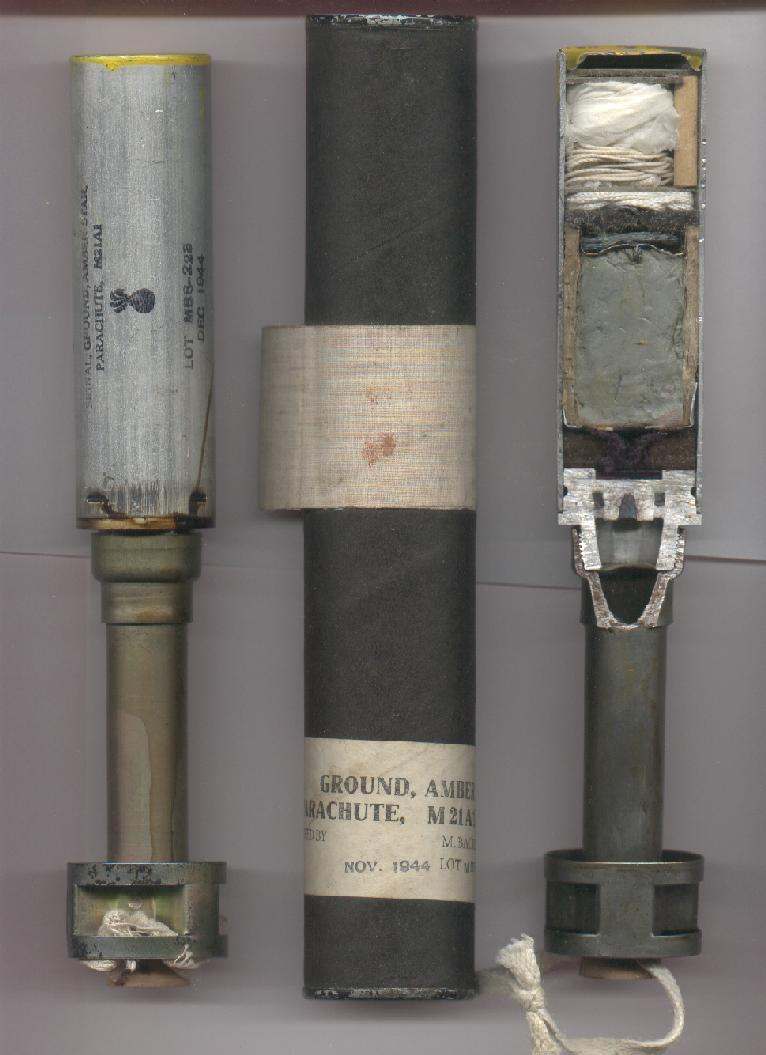

Being a basically curious guy I always have liked to take apart things to see what was inside and made them tick. Awhile ago, I bought a quantity of motley Amber M21A1 Ground Signals and in all my books I never saw a diagram of what was inside. I popped the top off of one and pulled out the parachute, but could not pull out the flare the easy way. So surgery was called for and I decided to cut it open and section it for display. Before you all scream IDIOT!! I took precautions to do this outside, far from the house, with goggles/gloves on and using a hand hacksaw only. It only took two quick, cuts down each side of the aluminum body for it all to pop open and all secrets were revealed. So after removing all of the dangerous materials and replacing them with plumbers epoxy. Here are the results.

If you are curious the sequence of events for this signal is. Rifle fires with blank and signal is discharged from end of rifle. Flame from rifle also shoots into base of signal and ignites time delay, powder train embedded in base. After powder train burns into signal, a small disk of propellant explodes, not only popping the signal out of the tube, but lighting a fuse on the flare itself. After parachute opens and fuse burns into the flare, it ignites and burns as it floats to the ground. A very clever design. I now use this as a display item, with the rest of my ground signal collection and it gets a lot of attention. BTW.

After 60 years, the flare which is basically a cardboard tube filled with powder, was massively bloated and was wedged in the signal. This made it impossible to remove the easy way.

Please do not try this operation yourself as it is very dangerous and you may get serious hurt.

Attached Images

  • cutaway_signal.jpg

Edited by rambob, 18 January 2007 - 05:45 PM.


#2 capa

capa
  • Members
    • Member ID: 1,646
  • 2,015 posts
  • Gender:Male
  • Location:South Carolina USA

Posted 04 September 2007 - 07:26 AM

Very Cool! And I applaud your hutzpah.
Fielding

#3 45ACP

45ACP
  • Members
    • Member ID: 2,776
  • 581 posts
  • Gender:Male
  • Location:Sanbornton, NH

Posted 22 April 2008 - 10:09 PM

Really neat do you do the same thing with rifle and pistol rounds?

#4 hirsca

hirsca
  • Members
    • Member ID: 12,790
  • 3,665 posts
  • Gender:Male
  • Location:Dallas, Texas

Posted 22 July 2015 - 06:13 AM

Bob--Thanks for resurrecting this great thread.  Great timing also.  I recently picked up this ground signal flare body and parachute from the estate of a WW2 Veteran.  Researching it was fairly easy except for nailing down what M designation is.  There are no markings remaining on the body/tube.  As you can see from the close up, there are two shoulders/step-ups, with the second one being the same diameter as the body/tube of the devise.  Different from the M21A1 cutaway in your post.  Is this one a M19A1?



Thanks again, Al.

Attached Images

  • 002.JPG
  • 003.JPG


#5 hirsca

hirsca
  • Members
    • Member ID: 12,790
  • 3,665 posts
  • Gender:Male
  • Location:Dallas, Texas

Posted 22 July 2015 - 06:35 AM

Sorry, double post.

Attached Images

  • 002.JPG
  • 003.JPG

Edited by hirsca, 22 July 2015 - 06:43 AM.
